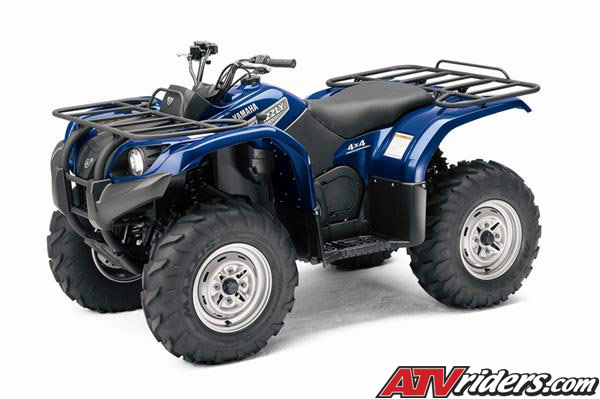

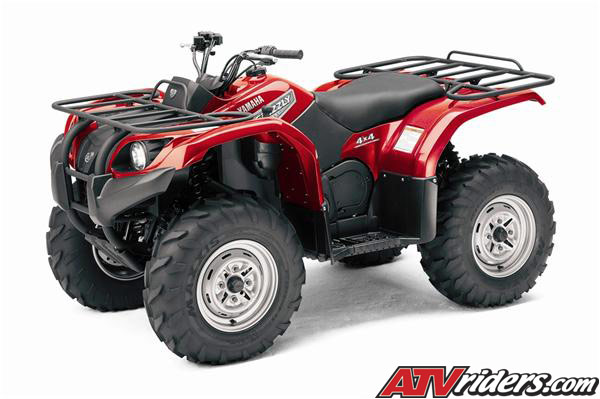

Grizzly 450 Automatic 4x4
has all the same great features as big brothers
Grizzly 660/700, including
four-wheel independent suspension, and it’s
powered by a fuel-efficient liquid-cooled
engine.
The full-featured Grizzly
450 Special Edition model features brushed
metallic water-dipped body work, new graphics,
red trim and carbon fiber-style side covers.
Industry-exclusive, fully
automatic Ultramatic® transmission is
the most advanced drive system in ATVing.
An automatic centrifugal clutch maintains
constant belt tension for reduced belt wear
and class-exclusive all-wheel downhill engine
braking.
Industry-exclusive three-position
On-Command® In/Out 4WD feature lets you
switch between 2WD, limited-slip 4WD and class-exclusive
fully locked differential 4WD—all with
the simple push of a button. Override button
allows engine to make maximum RPM in full
Diff-Lock mode.
Class-exclusive fully independent
long-travel four-wheel suspension features
double-wishbone suspension front and rear
with five-way preload adjustable shocks for
maximum control and comfort over rough terrain.
10.8 inches of ground clearance
and high-impact plastic skid plate improve
maneuverability and undercarriage protection.
Trick digital instrument
panel boasts a multifunction LCD display with
speedometer, odometer, dual tripmeters, hour
meter, 4WD status, transmission position and
clock.
Grizzly
450 4x4 ATV Engine
421cc liquid-cooled, SOHC
four-stroke single is rugged and powerful.
Semi-oval slide 33mm BSR
Mikuni carburetor and high-output DC-CDI ignition
deliver fantastic throttle response and engine
performance at all RPM.
Pushbutton electric starting
backed up by auxiliary recoil starter.
Stainless steel muffler and
header design provides superior power characteristics,
exhaust sound and durability.
Left side–mounted (Hi/Lo/N/R/P)
shift lever keeps throttle hand free while
shifting.
Large-capacity aluminum radiator
provides maximum cooling efficiency and is
positioned high in frame for optimal protection.
Compact engine design features
a 45-degree cylinder angle for maximum ground
clearance and lower seat height for quick,
responsive steering and agility.
Gear-driven crankshaft balancer
and rubber-damper engine mounts reduce vibration.
Fully sealed drive case keeps
out water and debris to minimize belt slippage.
Hand-operated side cover
drain keeps belt dry and free from mud and
debris.
Specially designed drive
system air intake vent prevents overheating
and keeps water and mud from entering drive
case.
Easy-access, tool-free air
filter box.
Grizzly
450 4x4 ATV Chassis/Suspension
Lightweight chassis features
outstanding durability with superior rigidity
for class-leading agility and handling.
Light steering and a class-leading
turning radius combine for increased comfort
and incredible maneuverability—even
in 4WD.
Fully independent four-wheel
suspension features a doublewishbone suspension
front and rear delivering 6.3 inches and 7.1
inches of travel, respectively, with five-way
preload-adjustable shocks to ensure maximum
tire contact—and comfort.
Large-diameter ventilated
hydraulic front and solid rear disc brakes
deliver tremendous stopping power in a variety
of conditions.
Direct front shaft drive
eliminates U-joint for greater durability
and more efficient power transfer when engaged
in 4WD.
Low seat height creates enhanced
handling.
Heavy-duty composite front
carry bar and CV joint guards help prevent
damage to boot covers and won’t dent
or rust.
Additional
Features
Steel cargo racks with special,
extra-durable wrinkle paint finish feature
a combined cargo capacity of 264 pounds (88
front, 176 rear).
Standard center-mounted trailer
hitch can hook up over 1100 pounds of payload.
Large-capacity, 4-gallon
fuel tank has a built-in gauge and easy-to-reach
petcock valve.
Recessed, water-resistant,
automotive-type DC power outlet handles wide
range of accessories.
