2008 Yamaha Raptor 80 Mini ATV - Specifications

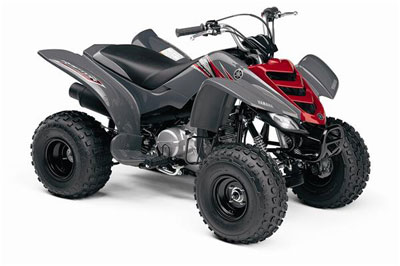

Yamaha Raptor 80 Mini ATV

Yamaha Raptor 80 Mini ATV Specifications:

Engine
Type	79cc air-cooled, SOHC 4-stroke single

Bore x Stroke	47mm x 45.6mm

Compression Ratio	9.6:1

Carburetion	Mikuni 16mm

Ignition	CDI

Starting System	Electric

Transmission	3-Speed automatic clutch

Drive Train	2WD; Shaft

Chassis

Suspension/Front	Leading arm, 2.3" travel

Suspension/Rear	Swing arm, 2.2" travel

Brakes/Front	Dual sealed drum

Brakes/Rear	Sealed drum

Tires/Front	AT18 x 7-7

Tires/Rear	AT18 x 8-7

Dimensions
Length	59.8"

Width	32.5"

Height	37.8"

Seat Height	25.6"

Wheelbase	40.6"

Ground Clearance	4.0"

Fuel Capacity	1.8 Gallons

Dry Weight	242 Lbs.

Other
Lighting	N/A
