2008 Yamaha Wolverine 350 Sport Utility ATV - Specifications

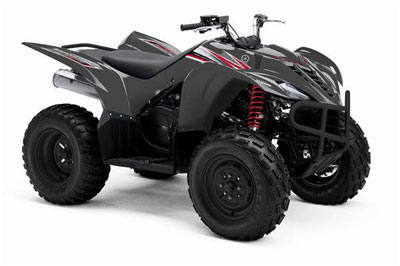

Yamaha Wolverine 350 ATV

Yamaha Wolverine 350 ATV Specifications:

Engine
Type	348cc air-/oil-cooled 4-stroke; SOHC, 2 valves

Bore x Stroke	83.0 x 64.5mm

Compression Ratio	9.2:1

Carburetion	Mikuni 33mm BSR

Ignition	DC - CDI

Starting System	Electric

Transmission	Yamaha Ultramatic® V-Belt / F,N,R


Drive Train	2WD; Shaft


Chassis

Suspension/Front	Independent double wishbone; 5-way preload-adjustable shocks, 6.3-in travel

Suspension/Rear	Swingarm; 5-way preload-adjustable, 7.1-in travel

Brakes/Front	Dual Hydraulic Discs

Brakes/Rear	Fully sealed drum

Tires/Front	AT23 x 8-12 radial

Tires/Rear	AT23 x 10-12 radial


Dimensions
Length	77.9"

Width	41.9"

Height	43.1"

Seat Height	33.1"

Wheelbase	48.5"

Turning Radius	118"

Ground Clearance	8.7"

Fuel Capacity	3.8 Gallons

Dry Weight	478 lbs.


Towing Capacity	1,102 lb with optional hitch


Other

Lighting	Dual 30W Krypton multireflector headlights & 21/5W brake light
Color	Team Yamaha Blue/White; Gray/Red
