Pro
Dual Linkage
for the
Honda TRX450R
|
|

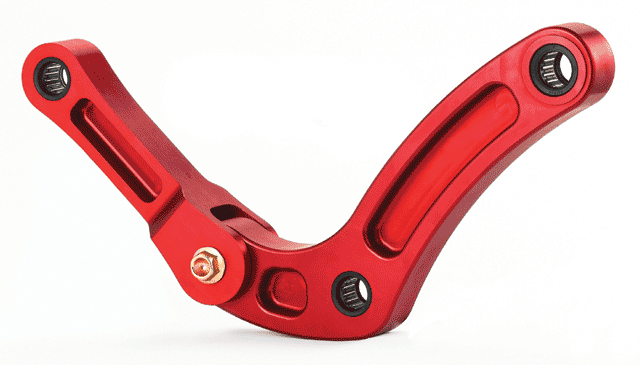

Elka Honda TRX450R
ATV Rear Linkage
Finally a solution to address the TRX450R rear
end suspension problems
Quebec, Canada (2005)
- This limited edition dual linkage was specifically
developed for pro-level riders looking for a
smoother rear suspension that will still prevent
bottoming. Elka Suspension’s Pro Dual
Linkage provides a full 12 inches of wheel travel,
which is 3 inches more than stock suspension
and 2 inches more than an Elka Suspension rear
shock combined to a stock linkage.
To
achieve such travel, this set-up uses a longer
17 inch specific shock absorber that allows
5 inches of stroke. This combination will provide
a smoother progression by varying the motion
ratio from 4.0 in the beginning to 1.8 at the
end of the compression cycle. The result is
an initially smoother suspension that gradually
gets firmer without any harsh spots to finally
offer more resistance to bottoming.
Compatible with virtually all
swingarms, this new system doesn’t require
any modifications to your ATV except for the
skid plate which will need more clearance. Made
from 7075-T6 aeronautical grade aluminium, the
Pro Dual Linkage is strong and resistant without
any major weight penalty. The high-quality needle
bearings used at all pivot points will ensure
a long-lasting, low friction use. It is also
anodized to match the beautiful look of your
Elka Suspension rear shock absorber.
The longer rear shock and the
dual linkage are sold as a complete combo only
and retrofit options are not available. The
5 inch stroke of the shock absorber will make
adjustments and fine-tuning easier by allowing
more stroke before reaching full travel. Riders
will also notice less fading because the linkage
will reduce the workload for the shock absorber.
The Pro Dual Linkage will not affect the ride
height while still allowing adjustments to it.
| Product Details: |
|
| Total wheel travel |
12” |
| Motion ration |
4.0 to 1.8 (see graph) |
| Shock length |
17” |
| Targeted users |
Pro Level Racers |
| Shock absorber options |
Elite Series (high- & low-speed compression,
rebound), $995 Sports & Racing Series
(compression and rebound), $855 |
| Linkage retail price |
$395 |
| Availability |
Now, limited edition |
| Where to get it |
Elka Suspension at 1-800-557-0552 or one
of our 1500 authorized dealers |
www.elkasuspension.com
1585-M, De Coulomb, Boucherville
(Quebec) Canada, J4B 8J7
(800) 557-0552
