2006

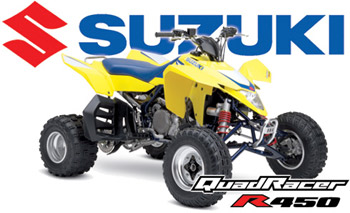

Suzuki LT-R450 QuadRacer ATV Specifications
| ENGINE |
| Engine
Type |
450cc,Single-cylinder,
DOHC 4-valve, liquid-cooled |
| Bore x Stroke |
95.5 X 62.8 mm |
| Compression Ratio |
11.7:1 |
| Carburetion |
Fuel Injection 42mm Bore w/16bit
ECM |
| Ignition |
CDI |
| Starting System |
Electric (Optional Kick Start
Conversion Kit Available) |
| Lubrication System |
Dry sump |
| Transmission |
5-speed constant mesh |
| SUSPENSION |
| Front |
Dual A-arm independent suspension,
with 10.0 inches travel, fully adjustable piggy-back
reservoir |
| Rear |
Swingarm with single shock suspension,
with 10.9 inches travel, fully adjustable piggy-back
reservoir |
| BRAKES |
| Front |
Dual Hydraulic Disc, Twin Piston
|
| Rear |
Hydraulic Disc, Twin Piston |
| TIRES |
| Front |
AT 20x7-10 Radial Dunlop KT381 |
| Rear |
AT 18x10-8 Radial Dunlop KT385 |
| DIMENSIONS |
| LxWxH |
72.6” x 49” x 42.7” |
| Seat Height |
30.7" |
| Wheel Base |
50.6" |
| Ground Clearance |
9.4" |
| Dry Weight |
368 Lbs (167kg) |
| Fuel Capacity |
2.6 gal. |
| GENERAL INFORMATION
|
| Color |
Champion Yellow, White |
| MSRP |
$7,299.00 |
