2015

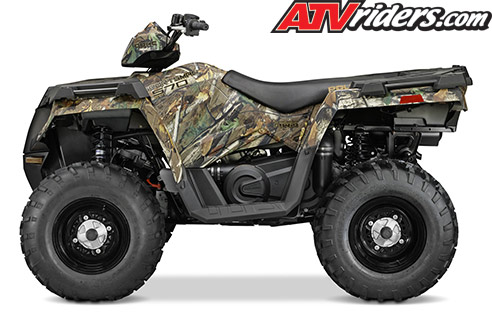

Polaris Sportsman 570 EPS Specs |
| Engine Type |
4-Stroke DOHC Single Cylinder |
| Displacement |
567cc |
| Fuel System |
Electronic Fuel Injection |
| Cooling |
Liquid |
| Transmission/Final Drive |
Automatic PVT P/R/N/L/H; Shaft |
| Drive System |
On-Demand True
AWD/2WD |
Engine Braking System/
Active Decent Control |
Not Equipped |
| Front Suspension |
Dual A-arm 8.2" (20.8 cm) Travel |
| Rear Suspension |
Dual A-Arm, IRS 9.5" (24.1 cm) Travel |
| Front/Rear Brakes |
Single Lever 4-Wheel Hydraulic Disc
with Hydraulic Rear Foot Brake |
| Parking Brake |
Park in Trans./Lockable Hand Lever |
| Front Tires |
25 x 8-12; 489 |
| Rear Tires |
25 x 10-12; 489 |
| Wheels |
Stamped Steel |
| Wheelbase |
50.5" (128.3 cm) |
| Estimated Dry Weight |
702 lb (318 kg) / EPS: 713 lb (323 kg) |
| Overall Vehicle Size |
83 x 48 x 48" (210.8 x 121.9 x 121.9 cm) |
| Ground Clearance |
11" (27.9 cm) |
| Fuel Capacity |
4.5 gal (17 L) |
Bed Box Dimension / Capacity
|
18 x 35 x 4" (46 x 89 x 10 cm) / 120 lb (55 kg)/ 240 lb (110 kg) |
| Payload Capacity / Towing Capacity |
485 lb. (220 kg ) / 1,225 lb (555.7 kg) |
| Cargo System |
Lock & Ride |
| Lighting |
Dual 50w Low Beam Bumper Lights, Single 50w High Beam Pod Light; Dual Brakelights/Taillights |
| Electronic Power Steering |
N.A. / EPS: Standard |
| Instrumentation |
Digital Gauge, Analog Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour meter, Gear Indicator, Fuel Gauge, AWD Indicator, Low Battery, Hi-Temp Light, Clock, DC Outlet |
| Colors |
Indy Red (Non-EPS only), Sage Green, Polaris Pursuit Camo, Bright White (EPS only) |
|
|
