Denny Schwartz's LRD Framed TRX250R ATV

Pro Armor March 2009 Quad of the Month

YZ426F Custom ATV QOTM ATV YZ426F Houser

Chassis | Suspension | Controls:

Frame: The frame is a 2004 LRD "Attitude" 250R frame.
A Arms: The A-arms are ARS/FX arms. They are the narrow XC arms.
Swingarm: The swingarm is also made by ARS/FX. Again its their XC version. swingarm. Its a "no-link" swingarm.
Steering Stem: Chrome +1 Roll Design anti-vibe stem.
Spindles: 400ex
Brakes: The calipers are all rebuilt and PC'ed, stock 1989 250R dual piston calipers. Aluminum brake caliper adapters were used with the front calipers so they would mount to the 400ex spindles.
Axle: RPM Dominator, XC version
Carrier: RPM tapered bearing carrier
Locknut: RPM anti-fade
Hubs F|R: Stock/Stock
Bars: Pro-Taper
Throttle/Clutch Lever: Motion Pro Twist throttle / ASV clutch lever
Grips: Spider
Bumper: Quad Boss
Grab Bar: Quad Boss

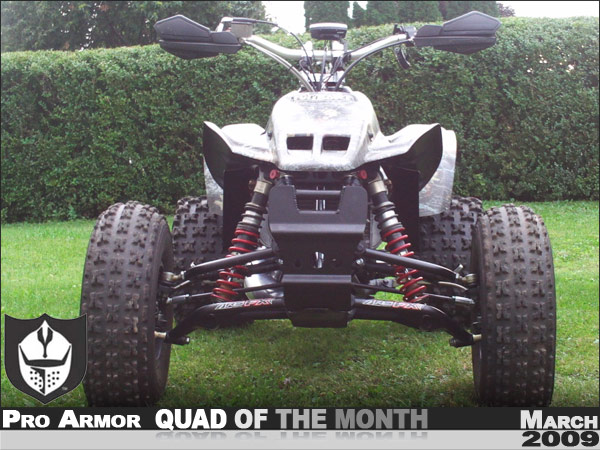

Front Shocks: Front shocks are long travel Custom Axis.
Rear Shock: Rear shock is a long travel, Custom Axis "no-link".
Brake Lines: Stainless front and rear.
Rotors F|R: Galfer Wave/Stock
Rims F|R:
Hiper/Hiper
Tires F|R: 23' ITP XCT Holeshots/20' Maxxis Razr II

February QOTM ATV YZ526 F ATV of the Month

Orange Crush TRX450R ATV - January QOTM


Body:

Plastic: FullBore Innovations
Graphics|Seat Cover: Mossy Oak Breakup printed on the plastics by Fullbore. Seat cover is a gripper made by N\Style
Footpegs: Roll/IMS with kickups
Handguards: PowerMadds with mirrors
Brake Pedal: Hinson
Fuel Tank: Clark
Skid: PRM full belly skid plate

Quad of the Month 450F 450F Red Blue Side


Powertrain:

Engine: The engine is taken from Bill Ballance's 2003 championship winning GNCC 250r. Its a full race spec, power valve 2 stroke, built and ported for Ballance by LRD.
Carburetor: Ballance's Keihen 38mm PWK Airstryker
Air Filter|Box: UNI filter wrapped in an Outwear mounted in a aluminum Pingery airbox that was fit with an LT500 airboot to work with the "no-link" rear shock. Airbox is PC'ed "black texture".
Pipe|Silencer: Ballance's LRD adjustable pipe with a new LRD silencer.
Clutch|Plates: Hinson basket, inner hub and pressure plate, with stock Honda clutch plates.
Gearing F|R: 14 tooth up front and either a 36 or 38 on the back, I can't remember !! But both sprockets are brand new Sidewinder Ti-Moly sprockets.
CDI|Killswitch: Brand new Honda CDI, brand new '89 wiring harness, brand new coil, brand new voltage regulator, 200 watt Ricky Stator hi-output stator and the kill switch is made by PRO-ARMOR !!
Cooling: High capacity Afco aluminum dual pass radiator and a twenty fin inline cooler.
Other:

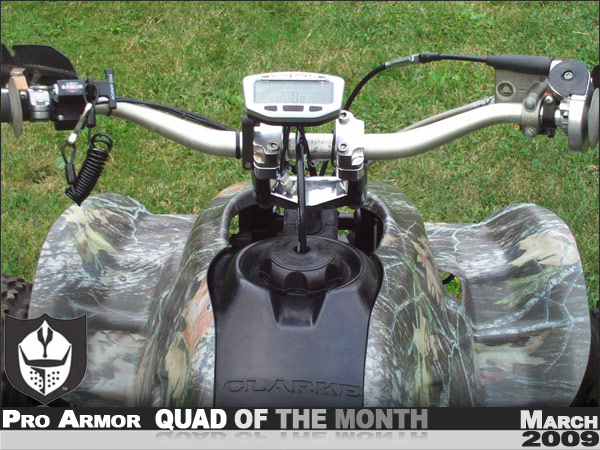

  • I have a Trail Tech Vapor speedometer mounted on the bars, I have the tach hooked up and it works great, the speedo also works great and I also have the water temperature probe installed.
  • I had to fabricate a lot of little stuff to fit the fat tubed LRD frame. I fabbed all the mounts for the plastic, the gas tank mounts, the head stay mount, the fuel petcock mount and the exhaust hanger.
  • Everything was fabbed from aluminum and PC'ed "black texture".
  • I did ALL the powder coating work myself.
  • Front brake ressy and rear tail light are from a 450R.
  • Noss Machine billet rear brake fluid ressy and a brand new rear brake master cylinder.

450F Houser Framed ATV
