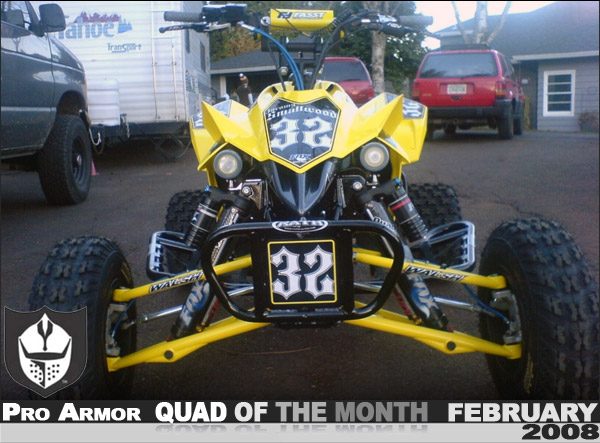

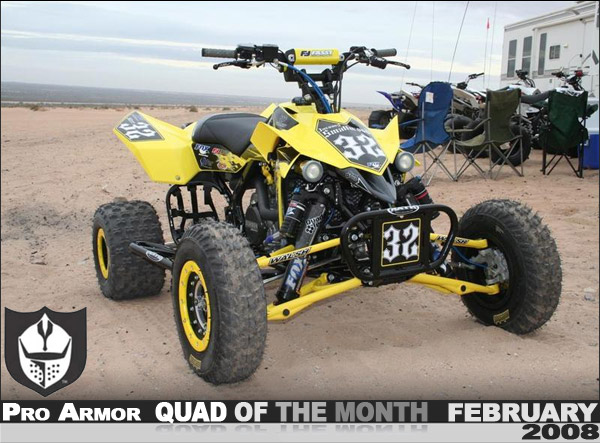

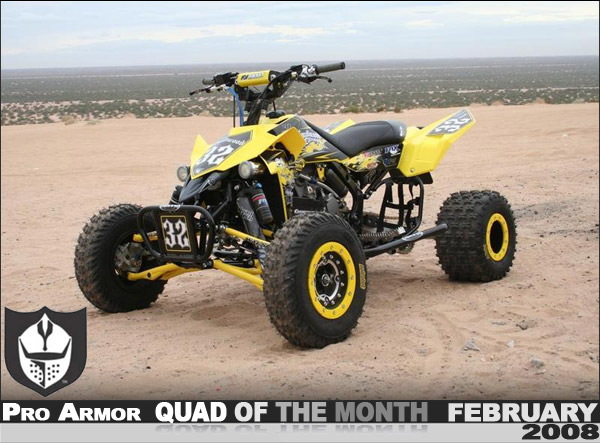

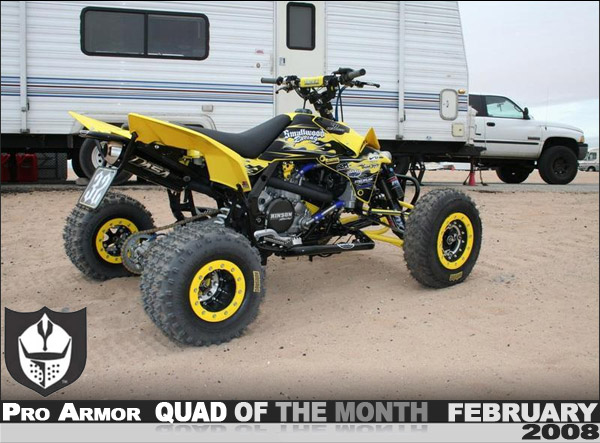

2006 Suzuki LTR 450 MX ATV
Jaromy
Smallwood's Pro Armor February Quad of the
Month
"I would like to thank Steve at
FuelATV, Nick at Factory Motorsports, Jim
at K2 concepts, and Jamie at LRD. Last but
not least I would also like to thank my
good friend John. Without his help I would
not have been able to get this done in time
for my big trip to Glamis.
I have always rode dunes and I decided
I wanted to start racing. I took everything
apart and put it back together with the
best parts I could find. Thanks to everyone
for the help...without them this would have
been much more difficult."
Chassis
| Suspension | Controls:
Frame: Powder coated
Ink black w/ silver sparkle – Sub
frame PC black
A Arms: Walsh MX Long Travel
powder coated yellow w/ silver sparkle
Swingarm: Stock
Axle: RPM Dominator II
Steering Stem: FuelATV
Anti-vibe
Stabilizer: Precision
Bars: Fasstco Flexx bars
Brake/Clutch Lever: ASV
Shorty (Black)
Grips: Spider
Heel Guards: Rath
Bumper: Rath
Grab Bar: Rath
Front Shocks: Fox Float
X Evol w/ Quad Tech CF shock guards
Rear Shock: Stock for now
Brake Lines: Steamline
2 line kit (blue)
Rims F|R: Hiper front and
rear w/ the rings painted Suzuki yellow
Tires F|R: Skat Trak Mohawks
/ 8 Paddle Hauler – ITP Holeshot MXR6
Misc - Gunner NC kill
switch, Carbon fiber frame guards, TrailTech
SCMR16 HID’s, H.E.P. Rear # plate
and Bracket, H.E.P. Roost guard, H.E.P.
Master Cylinder Guard, Motor Mounts CF yellow
|
Suzuki
LTR450 - Pro Armor Quad Of the
Month
|
Body:
Plastic: Cut front
Graphics: Custom design
by OutCast
Seat Cover: Quad Tech hump
seat
Bar Pad: Fasstco
Misc: Carbon Fiber Fuel
Pump Cover, CF look Gas Cap and Heat Shield,
Fuel ATV Parking brake Block Off, Powermadd
Power X hand guards, Quad Tech CF beak
Powertrain:
Cylinder|Head:
Stock
Bore & Stroke: Stock
Displacement: Stock
Cam: Stock
Fuel Injection: Power Commander
III USB w/ Fuel ATV custom map
Air Filter|Box: FuelATV
airbox eliminator
Pipe|Silencer: DASA w/
CF look canister and black ceramic coated
header & mid pipe
Clutch|Plates: Hinson
Gearing F|R: 13/36
Cooling: Engine Ice w/
two 3” inline coolers and a 1.6 lb
rad. cap
Other: Walsh Shift Pin
Relocate, Mod Quad Billet Case Saver, Blue
CV4 hoses
