2009 Arctic Cat 550 H1 4x4
Utility ATV Info - Continued
Arctic
Cat 550 H1 4x4 ATV Engine:
|
-
 |
Arctic
Cat 550 H1 ATV Engine
|
545cc, EFI, SOHC 4-stroke,
4-valve, single-cylinder, liquid cooled
engine
- The “H”
in H1 stands for Hemi. The hemispherical-shaped
head creates more complete, more efficient
combustion for performance-winning
power
- An Arctic Cat produced
performance engine built in the state-of-the-art
St. Cloud manufacturing facility
- Electronic Fuel Injection
aids in perfect starting no matter what
altitude or temperature changes.
- Liquid cooling system
with high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine
operating temperatures
- The Duramatic Automatic
Transmission has a long-life maintenance-free
belt that withstands the harshest of conditions.
|
Arctic
Cat 550 H1 4x4 ATV Chassis/Suspension:
|
- Improved Rider
Input -
12” steel wheel design has an optimized
scrub radius minimizing the rider steering
effort.
- Positive Shifting
- A new
shift detent profile in the lever linkage
allows for improved positive shifting
- Thundercat Halfshafts
- Developed from the Quad Terrain
Race circuit, All new halfshafts (axles)
were adopted from the Thundercat to increase
durability and strength
for the most brutal offroad conditions.
- New Headlight
Bulb Sockets -
The right-hand headlight bulb sockets
have been redesigned to eliminate the
bulb popping out, decreasing the chance
of the headlight housing
filling with moisture.
- Fully Independent
Suspension (FIS) How it works with or
without a swaybar - Arctic
Cat ATVs have an optional sway bar available
as an accessory purchase through your
authorized dealer. Similar to any off-road
4x4 vehicle, eliminating the sway bar,
lets the 10” of front or rear Fully
Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact
the traction capabilities; however, it
will enhance flatter cornering in aggressive
trail riding
-
 |
Arctic
Cat 550 H1 ATV Storage
|
Performance Tuned
Chassis -
When you sit on the 550 H1 EFI, it will
squat roughly 2 inches (depending on rider
size) while maintaining Arctic Cat’s
class leading 11” of
ground clearance and 10” of suspension
travel. This ride-in calibration lowers
center of gravity for precise cornering
- Performance Minded
Ergonomics - The
seat on the 550 H1 EFI has been redesigned
and lowered approximately one inch to
reduce the riders center of gravity along
with giving an improved sense of sitting
“In” the machine instead of
“On” it.
- Industry Leading
Ground Clearance - 11”
of ground clearance enhances the ability
to navigate through mud or over large
rocks, logs, and other objects encountered
in rough terrain
- Large Capacity
SpeedRacks - Industry leading
weight capacity and overall cargo carrying
surface area allows 100 lb carrying capacity
on the front rack and 200 lbs. on the
rear
- SpeedRack Technology:
•Allows
very quick installation and removal of
a wide variety of Arctic Cat exclusive
accessories without the need for tools,
bloody knuckles or swearing
•SpeedRack
and its accessories add value to the machine
and also enhance the efficiency of your
hunting, fishing, farming or utility chores
- 2-Inch Automotive
Style Receiver Hitch - This feature
allows the consumer to remove the hitch
from their 2” automotive receiver
and install it into the ATV’s receiver
hitch (Receiver Hitch and Ball Standard
on LE)
- Floating Hydraulic
Disc Brakes - Low maintenance,
positive stopping power in either dry
or wet conditions
- Adjustable Shocks:
• Set the spring preload
(5 rear positions, 5 front positions)
on the shocks to tailor the ride to individual
riding styles, terrains and loads
Electric Shift 2-to 4-Wheel Drive with
new Electric Front Locking Differential
• Full-lock front
differential transfers engine torque to
both front wheels when selected for added
traction with an all new electronic rocker
switch located on the gauge pod while
4wd/2wd switch is located on right-side
handlebar for quick, convenient shifting
in-and-out of four-wheel
drive.
|
Additional
550 H1 4x4 ATV Features:
|
-
 |
Arctic

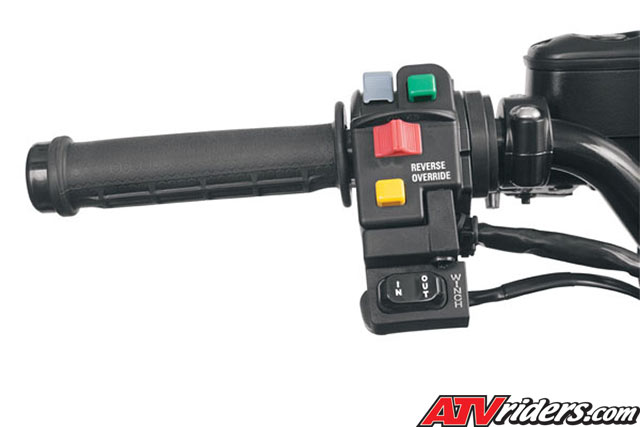

Cat 550 H1 LE ATV Winch Control
|
Limited Edition
-550 H1 comes in a Limited Edition
with all the great features of the standard
model, but additionally has a 3,000lb
Warn Winch, Hand Warmers, 2” Receiver
Hitch w/ball, Cat Black Metallic Painted
bodywork, 12” Aluminum wheels.
- Digital Instrument
Pod - Displays up to 14 critical
operation information indicators including:
clock/hour meter, fuel level, mode button,
set/reset button, odometer/trip, gear
position, speedometer/tachometer, needle
display, differential lock, drive select,
high beam, battery condition, temperature
and oil pressure
- Tires -
The newly developed Dunlop Quadmax is
standard on all Arctic Cat ATVs. (25x8-12
front, 25x10-12 rear)
- Color Options
- Green, Max 4 Camo, Lime, Red,
Cat Black Metallic (LE)
|
About Arctic Cat:
Arctic Cat Inc., based in Thief
River Falls, Minn., designs, engineers, manufactures
and markets all-terrain vehicles (ATVs) and snowmobiles
under the Arctic Cat® brand name, as well
as related parts, garments and accessories. Its
common stock is traded on the Nasdaq National
Market under the ticker symbol “ACAT.”
More information about Arctic Cat and its products
is available on the Internet at www.arcticcat.com
