2011

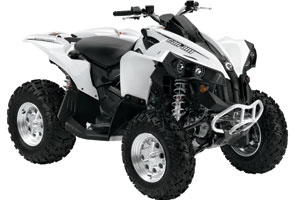

BRP Can-Am Renegade
800R EFI
4x4 Sport-Utility ATV
2011
Can-Am Renegade 800R Sport-Utility
ATV Specifications:
|
ENGINE |
Type |
799cc,
4-stroke, V-twin, liquid-cooled,
8-valve SOHC |
Bore
& Stroke |
91 x 62 mm |
Fuel
Delivery |
EFI,
46mm Throttle Body, 2 Siemens‡
VDO injectors |
Starting
System |
Electric |
Transmission |
CVT,
sub-transmission with high, low,
park, neutral & reverse Standard
Engine Braking |
Drive
Train |
Selectable
2x4/4x4 shaft driven with Visco-Lok†
front differential |
CHASSIS |
Frame
|
SST |
Front
Suspension Type |
RS-Type
Double A-arm, forged aluminum
upper arm/ HPG Shocks |
Travel |
8.5 in (216 mm)
|
Rear
Suspension Type |
RS-Type
TTI independent, HPG Shocks |
Travel |
9 in (228.6 mm) |
Front
Brake |
2
hydraulic discs |
Rear
Brake |
1 inboard hydraulic
disc |
Tires
/Front |
ITP
Holeshot ATR 25 x 8 x 12 in |
Tires
/Rear |
ITP Holeshot
ATR 25 x 10 x 12 in |
Wheels |
Center-cast
aluminum |
DIMENSIONS |
L
x W x H |
86 x 46 x 45
in (2,184 x 1,168 x 1,143 mm) |
Wheelbase
|
51
in (1,295 mm) |
Dry
Weight |
614 lbs ( 279
kg) |
Ground
Clearance |
11
in (305 mm) |
Seat
Height
|
34.5 in (877
mm) |
Rack
Capacity |
Rear:
35 lbs (16 kg) |
Towing
Capacity |
1,300 lbs (590
kg) |
Fuel
Capacity |
4.3
US gal (16.3L) |
Storage |
Rear storage
1 US gal (3.7L) |
FEATURES |
Instrumentation |
Multi-function
gauge: Speedometer, tachometer,
odometer, trip and hour meters,
fuel, gear position, 4x4 indicator,
diagnostics, auto shut off |
Anti-theft |
D.E.S.S.
(digital encoded security system) |
Electrical |
Prewired for
winch |
Lighting |
4
fender mounted Projector Beam
headlamps (60W) with tail light
/ brake light |
DC
Outlet |
Lighter-type
in console, Standard connector
at the back (15A) |
Color |
Yellow
/ White |
Price:
|
$TBA |
X
xc PACKAGE - $TBA |
- Dual-mode Dynamic Power Steering
(DPS)
- Visco-Lok QE
- Beadlock wheels
- Front sway bar
- Front KYB HPG aluminum piggyback
shocks with dual speed compression,
rebound and preload adjustments
- Rear KYB HPG with remote reservoir
shocks with dual speed compression,
rebound and preload adjustments
- Aluminum skid plate
- 650 watts magneto
- Handlebar wind deflectors
- Aluminum taper-profile handlebar
with square pad
- X xc -package coloration,
graphics and seat cover
- Yellow & Black with X
package graphics
|
www.Can-Am.brp.com
|
|
|
|
|
|
