2013

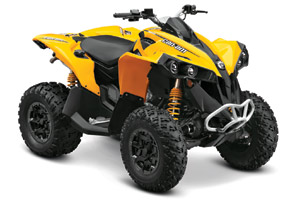

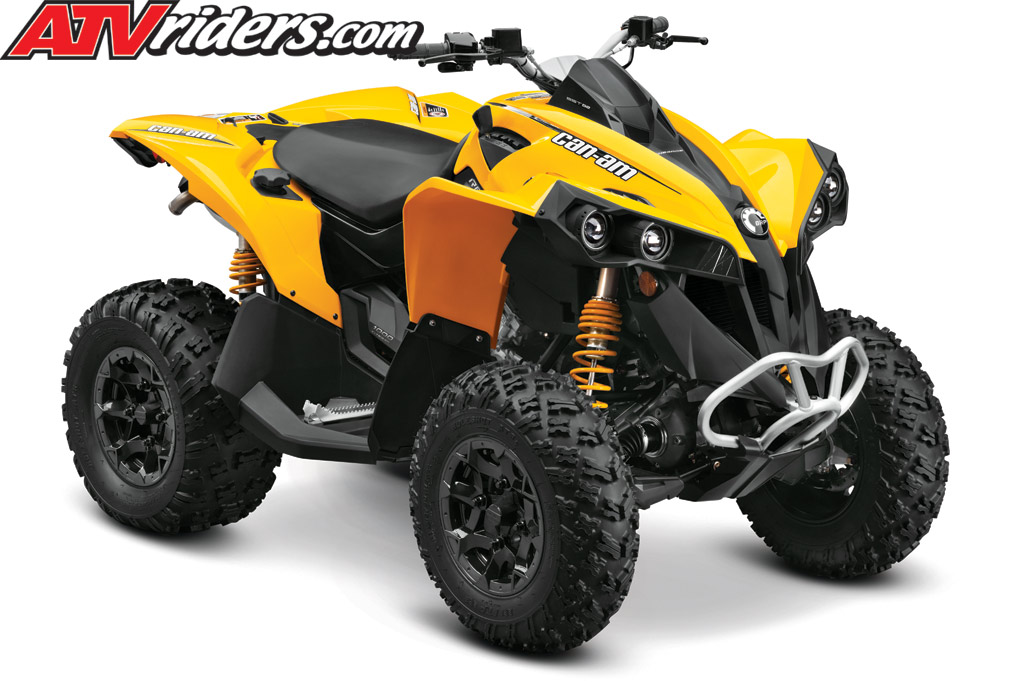

Can-Am Renegade 800R EFI 4x4 Sport
Utility ATV
Can-Am
Renegade 800R EFI Sport Utility
ATV Key Features
Rotax 800R
V-Twin engine
The 71-horsepower, 80º 799cc
V-twin engine powering the Outlander
800R continues its stronghold in
the 800-class and is more than capable
of holding its own against machines
with larger displacement levels*.
The liquid-cooled, single overhead
cam power plant has four valves
per cylinder and is fed by a 46mm
throttle body and two VDO Siemens
fuel injectors for instantaneous
throttle response. With an unprecedented
power-to-weight ratio, gobs of torque,
electronic fuel injection, and progressive
throttle control the Rotax engine
is powerful, efficient and smooth
in any situation. And EFI means
the
800R engine always operates at its
peak, regardless of temperature
or altitude.
Large Radiator
The large capacity radiator improves
cooling for optimal engine performance
for both work and play.
High-grade
exhaust and silencer
The engine package includes an updated
exhaust system, and a durable end
cap/cover contribute to the exhaust’s
upperclass appearance. The new system
remains true to the Can-Am tradition
of producing a throaty and impressive
exhaust note, yet adheres to strict
dB and emissions standards.
Dual-room
NO-TOLS AIR BOX
The Renegade 800R air box is placed
at a higher and more centralized
location for filtering and processing
air. The no-tools air box features
a dual-room design that improves
the air filtration process and the
quality of air by capturing dirty
air in one portion of the box and
clean air in another section before
it sends the air to the engine.
Along with the air box the air intake
is also higher in the frame to improve
the machine’s capabilities
in the mud and water. Accessing
the filter for maintenance and inspection
only requires the removal of the
seat, console plastic and exterior
push plate. The air filter is securely
attached to the air box housing
with a new screw-on system and push
plate that work in tandem to create
a tight seal.
Easy access
for maintenance
The Renegade ATVs have a maintenance-friendly
setup. The battery is beneath the
seat to offer easier access and
improved protection. The rear brake
fluid reservoir, solenoid starter
and relays were also placed conveniently
under the seat.
CVT Transmission
For performance in wet conditions
and terrain, the CVT system has
a 13-bolt sealing system and an
integrated drain plug that’s
easy to access if the need ever
arises to remove water from the
CVT housing. The CVT intake is positioned
in a high location in the chassis
for optimal performance in wet riding
conditions. Automatic transmission
with standard engine braking featuring
high, low, park, neutral and reverse
is also included.
Surrounding
Spar Technology (SST) G2 Frame
The Renegade 800R uses the next
generation and industry-exclusive
Surrounding Spar Technology (SST)
G2 chassis from BRP. The welded-steel
SST G2 frame offers increased structural
integrity, improved durability and
precision handling. The SST G2 design
offers also increases strength,
provides a lower center of gravity,
improves handling and requires far
less
components, materials and welds
than a traditional tube frame. The
SST G2 frame also stronger torsional
stiffness to more properly meets
the high expectations of the end
user for both work and play.
Visco-Lok front differential
The progressive auto-locking Visco-Lok front
differential is unique to the ATV industry.
The innovative system constantly monitors front
wheel speed and, if it detects one wheel spinning
more quickly than the other, it progressively
sends additional power to the wheel with better
traction. Wheel hop or driveline wind-up is
also eliminated to keep the system transparent
to the operator. It’s also a fully locking
design, which means no need for either a rev
or speed limiter. Visco-Lok QE (Quicker Engaging)
is available on the Renegade X xc.
Double A-arm front suspension with
dive-control geometry
The Renegade retains its race-proven double
A-arm setup and uses five-way preload HPG shocks.
Front-end suspension travel is 9.0 inches (23.6
cm). Dive-control geometry tightly controls
the roll-center, especially when entering corners.
The setup also inspires confidence, reducing
kickback to the operator by locating the knuckle
in the wheel.
Trailing Torsional Independent (TTI)
rear suspension
The TTI, which offers less moving parts than
competitive systems, was designed to eliminate
scrub and camber changes when the suspension
moves up and down and keep the quad in straight
line. Unique to Can-Am, the proven Torsional
Trailing arm Independent (TTI) rear suspension
offers increased rigidity and 9.3 inches (24.1
cm) of travel. A removable
external sway bar and lower pivot points improve
geometric squatting to improve traction and
the transferring of power to the ground.
FOX HPG shocks
The standard Renegade 800R wears preload-adjustable
high-pressure gas (HPG) shocks, front and rear,
with a specific calibration to soak up both
high- and low-speed bumps and keep the ride
smooth.
12-inch (30.5 cm) cast-aluminum whels
The base Renegade 800R model has innovative
computer-optimized wheels. A center-less wheel
design reduces unsprung weight but offers improved
strength. Durability increased in strategic
areas while excess material was eliminated in
other areas to save weight.
25-inch (66cm) ITP Holeshot ATR tires
This versatile tire provides proven, all-around
trail performance and impressive traction.
214mm hydraulic disc brakes
The front setup uses two large 214mm disc brakes
with twin-piston calipers for superior stopping
power. At the rear, the models use two, twin-piston
caliper and 214mm hydraulic disc brakes. The
system also includes separate front and rearhand
brake levers for optimal control.
Lighting
For improved nighttime clarity and visibility
on the trail, the Renegade 800R comes with 240
watts (4 x 60 w) of lighting power for the most
in the industry. Four projector-type headlights
bring unequaled styling and performance to the
Renegade. The taillights offer a stylish design
that blends in with the rear plastic and offers
increased visibility for trail riding.
Fuel tank
The large fuel tank holds 5.4 gallons (20.5
liters) of gas, so you can have more time to
explore.
Digitaly Encoded Security System (D.E.S.S.)
D.E.S.S.™ is the ATV industry’s
lone factory-installed anti-theft device. The
system utilizes electronic key codes that are
required to match each specific ATV’s
ECM. The machine will not start unless the coded
microchip in the key matches the code pre-installed
in the engine control module. Two keys are included
with each model. The performance key allows
the ATV to operate at maximum performance. The
Normal key limits acceleration and top speed.
