2011

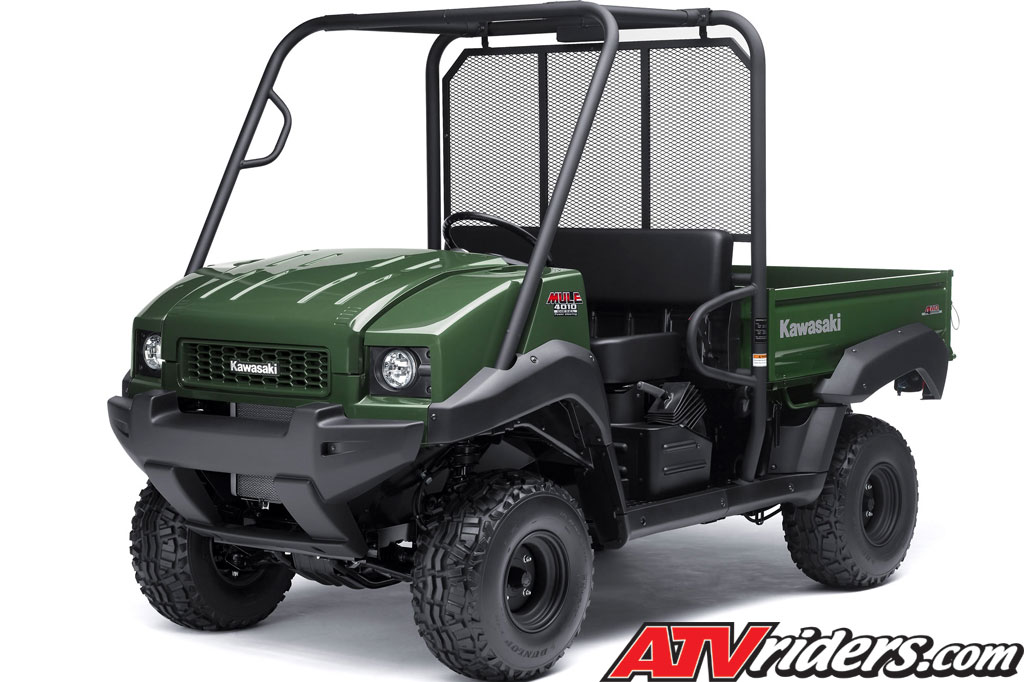

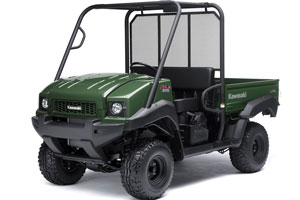

Kawasaki MULE 4010 4x4
Diesel UTV Specifications
|
| Engine |
Four-stroke, liquid-cooled, three-cylinder, overhead valve diesel |
|
|
|
|
|
|
|
| Air filter |
Snorkel-type with cyclone-type two-stage dry replaceable element |
|
| Oil filter |
Automotive-type spin-on canister |
|
| Ignition |
Compression with glow plugs for starting |
|
| Electrical |
12V DC, 52 amp-hour battery, 40 amp alternator |
|
| Transmission |
Kawasaki Automatic Power-Drive System (KAPS), with reverse, dual range, 2WD/4WD |
|
| Final drive |
Shaft, selectable four-wheel drive with dual-mode rear differential |
|
| Exhaust |
Muffler with USFS-approved spark arrestor |
|
|
|
| Front suspension / wheel travel |
Independent, MacPherson strut / 3.9 in. |
|
| Rear suspension / wheel travel |
Semi-independent, De Dion axle with leaf springs and shocks / 2.8 in. |
|
| Steering |
Electric power steering assisted rack-and-pinion |
|
| Brakes |
Four-wheel hydraulic drums, sealed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Roll over protective structure (ROPS) |
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement |
|
| Cargo bed dimensions (LxWxH) |
46.3 x 51.6 x 11.3 in. / 15.6 cu. ft. |
|
|
|
| Cargo Bed Capacity |
1,100 lbs. |
|
| Towing capacity |
1,200 lbs. |
|
|
|
| Top speed |
25 mph, governed |
|
| Instruments |
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet, (2) 5/21-watt taillight/brake light, (2) 35-watt sealed-beam headlight, speedometer |
|
| Color Choices |
Woodsman Green |
|
|
|
| Good Times™ Protection Plan |
12 or 24 months |
|
