2012

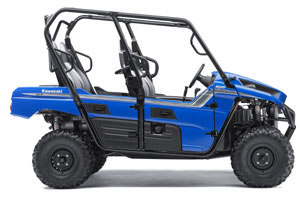

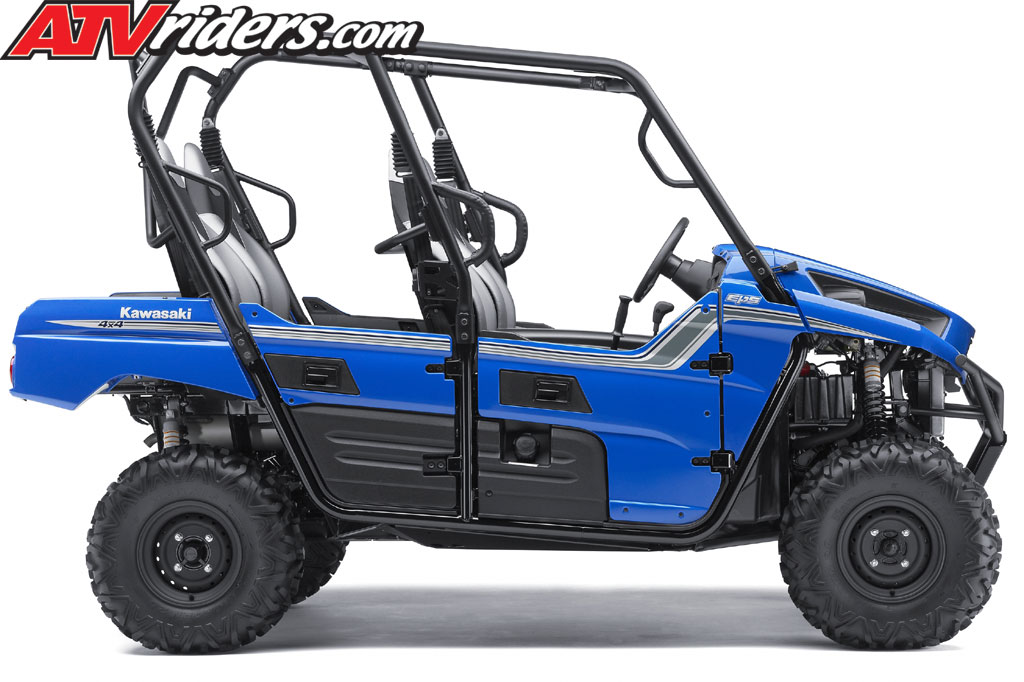

Kawasaki Teryx4 750 EPS 4x4 RUV Specifications
|
| Engine |
Liquid-cooled, 90-degree, four-stroke V-twin |
|
| Valve System |
SOHC, four valves per cylinder |
|
|
|
|
|
|
|
|
|
| Fuel System |
DFI®, 2 x Mikuni 36mm
throttle bodies |
|
| Ignition |
TCBI w/ electronic advance |
|
| Transmission |
Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control |
|
| Final drive |
Selectable four-wheel drive with Variable Front Differential Control, shaft |
|
| Frame type |
Double-X design using
large-diameter, thin-walled, high-tensile
tubular steel |
|
| Front suspension / wheel travel |
Adjustable dual A-arm
with fully adjustable, gas charged,
reservoir shocks / 7.8 in. |
|
| Rear suspension / wheel travel |
Adjustable Independent
Rear Suspension (IRS) with fully adjustable,
gas charged, reservoir shocks / 8.3
in. |
|
| Front Tire Size |
Maxxis 26x9-12 |
|
| Rear Tire Size |
Maxxis 26x11-12 |
|
| Front brakes |
Dual hydraulic discs with 2-piston calipers |
|
| Rear Brakes |
Sealed, oil-bathed, multi-disc |
|
|
|
|
|
|
|
|
|
| Ground clearance |
10.8 in. |
|
| Lighting |
(2) 35W headlights, (2) 8W taillight, 27W stoplight |
|
| Cargo Bed Capacity |
249 lbs., 47.6 W x 17.9
L x 8.7 in. H |
|
| Towing Capacity |
1,300 lbs. |
|
|
|
|
|
| Instruments |
Multi-function Digital
Meter with speedometer, fuel gauge,
clock hour meter, odometer, dual trip
meter and parking brake, CVT belt, R/N/P/4WD,
water temp and oil pressure indicators
|
|
| Color Choices |
Vibrant Blue |
|
| Warranty |
6 months base warranty |
|
|
|
