Fuel injected 90-degree 749cc V-twin engine
– same power character with perfect
delivery throughout the rpm range and faster
throttle response
36mm throttle bodies are controlled by
a 32-bit CPU, which monitors coolant temperature,
air intake temperature, throttle position,
air intake pressure, vehicle speed and crankshaft
angle to help ensure the perfect air fuel
mixture
Light throttle action due to reduced spring
rate for the throttle return springs and ball
bearing equipped throttle body for less friction
High-pressure fuel pump located inside
tank
Air for the continuously variable transmission
(CVT) and airbox enter from a reverse-facing
snorkel located beneath the handlebars to
help protect against water and mud
Access to the airbox is simplified by removing
only one cover
Radiator is compact and placed high in
the chassis for better protection against
mud and debris
Aluminum cylinders are Electrofusion-plated
for light weight, long wear and excellent
heat dispersion
Highly efficient and compact rare-earth
magnets in the generator help contribute to
reduced engine width
Engine can be started in any gear when
a brake is applied
Electronically controlled Kawasaki Engine
Brake Control helps to slow the ATV under
certain conditions
Bruce
Force 750 4x4i Transmission/Selectable
Four-wheel-drive:
CVT features high and low ranges, plus
reverse
Rider can select two- or four-wheel-drive
operation by pressing a button located on
the handlebar
Limited-slip front differential reduces
steering effort under normal four-wheel drive
operation, while Variable Front Differential
Control permits rider to distribute torque
equally to left and right front wheels for
maximum traction
Cardan joints on drive shafts absorb torque
fluctuations and reduce vibration
New stronger front and rear axle boots
made from plastic to provide increased protection
from debris
Bruce
Force 750 4x4i Chassis:
Double-cradle frame is made of sturdy, tubular
steel

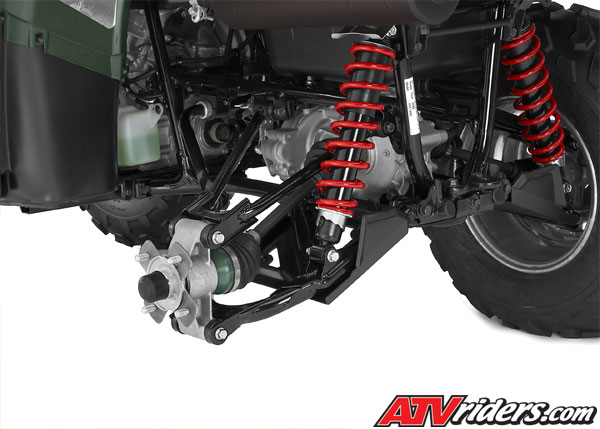

Kawasaki's
Brute Force 750
4x4i ATV rear IRS.
Chassis provides 9.7 inches of ground clearance
and now comes with pre-routed tubing and mounting
brackets for easy winch wiring and installation
Dual A-arm front suspension feature adjustable
shocks and 6.7 inches of travel
Independent rear suspension provides the
best balance of rider comfort and handling
at low to medium speeds, and provides 7.9
inches of travel
Upper and lower front A-arms and lower
rear A-arms utilize a combination of needle
bearings and ball joints for smooth suspension
action, high stability and excellent rider
comfort
Bruce
Force 750 4x4i Misc.
Features:
Dual front disc brakes with two-piston
calipers and Kawasaki’s sealed, oil-bathed,
multi-disc rear brake system provide maximum
stopping power
