79cc of reliable, electric-start four-stroke
fun feed into a three-speed gearbox with
automatic clutch, making the Raptor 80 a
great choice for those getting started or
moving up.
Class-exclusive shaft drive is virtually
maintenance-free; no messing with chain
adjustment and lubrication.
Low 25.6-inch seat height for quick,
balanced steering and optimal rider comfort.
Large, class-leading fuel capacity—1.8
gallons—increases range, which means
less fill-ups and more fun out on the trail.
Yamaha
Raptor 80 Mini ATV Engine
The
Raptor's 79cc Air Cooled
Engine
Feisty 79cc air-cooled, SOHC four-stroke
single puts out smooth, reliable power perfectly
tuned to the rider starting to hone his
or her ATV skills.

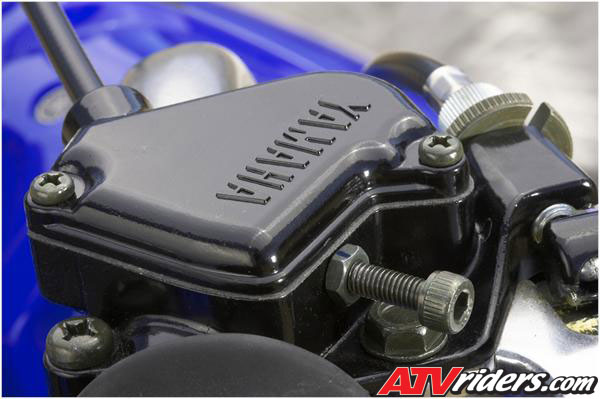

Adjustable throttle limiter allows a
parent or adult supervisor to match the
engine’s power output to the rider’s
skill level, and an intake restrictor plate
can be removed as skill increases.

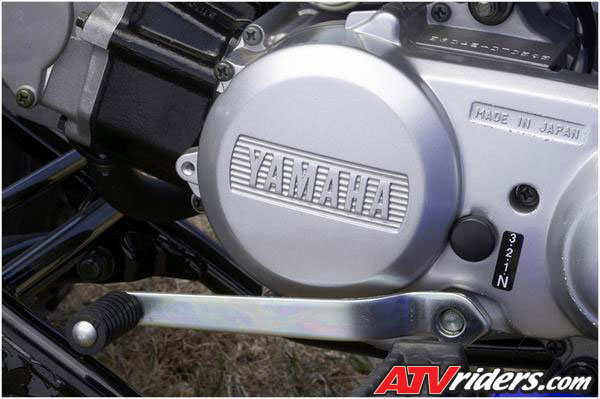

Three-speed transmission with automatic
clutch ensures smooth shifting and lets
the entry-level rider focus on the trail
by eliminating a hand-operated clutch.
Rugged muffler with USFS-approved spark
arrestor for quiet operation.
Automatic cam chain tensioner helps reduce
the need for engine maintenance and extends
engine life.
Yamaha
Raptor 80 Mini ATV Chassis/Suspension
Leading-arm front suspension with 2.3
inches of travel smooths out the trail for
a comfortable, confidence-inspiring ride.
Rear swingarm and a single rear shock
with 2.2 inches of travel further enhance
ride comfort and traction.
Class-longest wheelbase at 40.6 inches
helps accommodate kids 12 and older; roomy
ergonomics mean they won’t outgrow
this one too quick.
4.0 inches of ground clearance clears
all sorts of obstacles.
Fully sealed front and rear drum brakes
keep out water and debris, providing strong,
reliable stopping power.
Beefy 18x7-7 front and 18x8-7 rear knobby
tires offer excellent traction and help
boost ground clearance.
Additional
Features
Raptor 700R-style bodywork turns this
entry-level machine into one wicked-looking
ride.
Raptor-style grips add comfort and look
cool too.
Wide, cushy seat and full-size handlebars
provide excellent all-day comfort and minimize
fatigue.
Rugged, wide fenders with class-exclusive
rear mud flaps deliver outstanding mud and
splash protection to ensure a dry, comfortable
ride.
