2010 Polaris Sportsman XP 550 & 850 (Availiable with Power Steering)

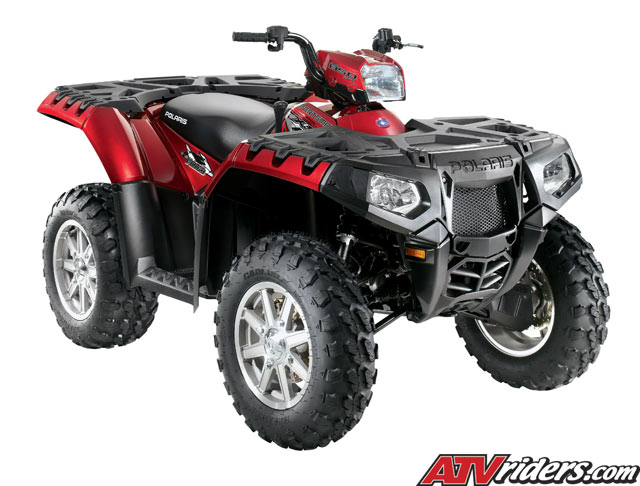

• 2010 Polaris Sportsman XP 850 ATV avail. with Electronic Power Steering

  NEW! Redesigned 14" Cast Aluminum Wheels and 26" Carlisle Terratron Tires (on EPS models)
• Features largest brake discs for superb stopping power.
• The easiest, fastest responding Polaris
  On Demand All-Wheel Drive (AWD)
  system automatically engages when
  the rider needs more forward traction.
  It reverts to 2WD automatically when
  AWD is no longer needed.
• Powerful 850cc twin EFI with 70 hp.
• Powerful 550cc single EFI with 42 hp.
• Decreased engine vibration due to rubber mounting
  to chassis & internal balance shafts.
• Large airbox for more power and quieter operation.
• Largest starting motor (850) for more reliable starting.
• Anti-Kickback Steering: Longer A-arms & largest wheels moves the steering pivot of each axle to the most neutral center part of the tire.
• Power steering models offer the most powerful steering system available on an ATV.
• Active Decent Control [ADC] provides four-wheel braking when vehicle is in AWD, ADC is operating at speeds below 15 mph and no throttle is being applied.
• Rolled Independent Rear suspension minimizes rearend squat and provides better bump absorption.
• Rolled IRS is coupled w/ progressive, dual-rate springs with adjustable preload front & rear.
• Dual A-arm front suspension with longest control arms.
• Models feature the highest suspension travel with 9 in./22.9 cm front and 10.25 in./26 cm rear.
• Highest ground clearance at 12 in./30.5 cm.
• Sportsman XP 850/550 Specifications

2010 Polaris Sportsman 500 & 500 H.O. EFI ATV

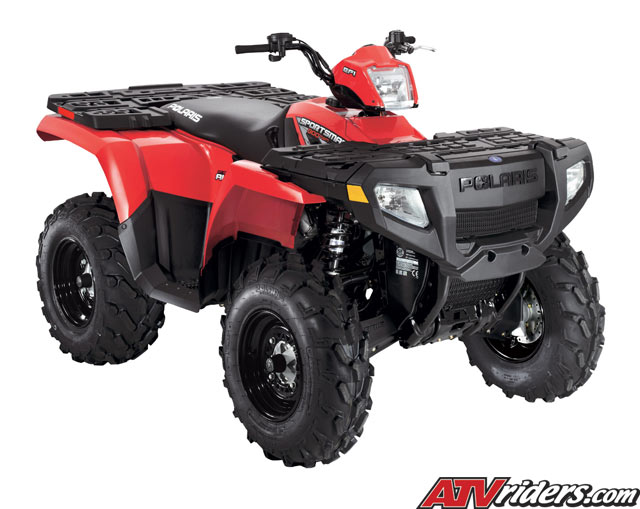

• 2010 Polaris Sportsman 800 H.O. EFI ATV

  PVT (Polaris Variable Transmission), the industry’s all-time best-selling automatic transmission, continually senses engine speed and vehicle torque load to provide the proper amount of power to the drive wheels in every type of riding situation.
• The long-travel Polaris IRS (Independent Rear Suspension) is a fully independent, progressive-rate suspension with an anti-roll bar and 9.5 in./24.1 cm of travel.
• MacPherson strut front suspension has 8.2 in./20.8 cm of travel.
• The easiest, fastest responding Polaris On Demand All-Wheel Drive (AWD) system automatically engages when the rider needs more forward traction. It reverts to 2WD automatically when AWD is no longer needed.
• The engine is protected by steel skid plates that will take the brunt of contact with obstacles.
• Integrated front and rear storage compartments protect gear while keeping it within arm’s reach.
• Sportsman 800/500 H.O. EFI Specifications

2010 Polaris Sportsman 800 6x6 Big Boss ATV

• 2010 Polaris Sportsman 800 6x6 Big Boss ATV

  Powerfull Liquid Cooled Polaris 800 EFI Engine
• Like the rest of the Sportsman line, the
  Sportsman 6x6 uses single-lever braking for hydraulic disc stopping power on all wheels.
• Dual-sensing Polaris Variable Transmission responds to both engine RPM and vehicle torque load for seamless response to changing off-road conditions.
• The Polaris On Demand All-Wheel Drive (AWD) system provides true 6-wheel drive and automatically engages when the rider needs more forward traction. It reverts to 4WD (rear wheels) automatically when AWD is no longer needed.
• IRS provides 6 in./15.5 cm of rear travel.
• MacPherson front struts provide 8.2 in./20.8 cm of front travel.
• Improved ground clearance of 10.5 in./26.7 cm
• Engine Braking with Active Decent Control - ADC provides four-wheel braking when vehicle is in AWD, ADC is operating at speeds below 15mph and no throttle is being applied.
• A heavy-duty hitch gives the Sportsman 6x6 the versatility to handle towed loads up to 1,500 lbs./680 kgs.
• The rugged, composite utility box has a carrying capacity of 800 lbs./362.9 kgs. and uses a gas-assist mechanism to make dumping the heavy loads easier.
• Sportsman 800 6x6 Big Boss Specifications
