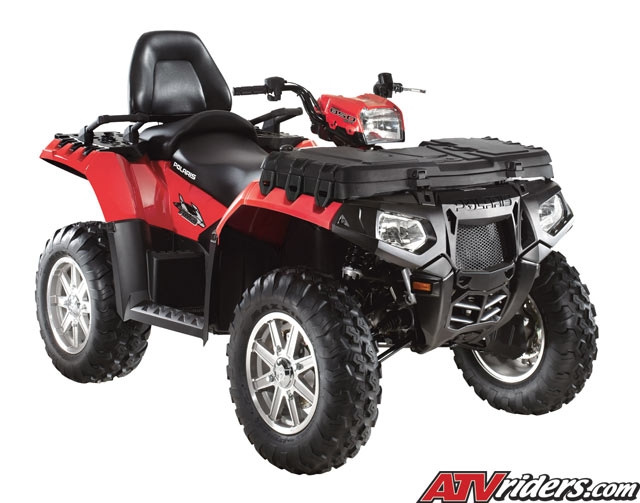

2010 Polaris Sportsman 550 & 850 Touring EPS ATV

• 2010 Polaris Sportsman 850 Touring 2-UP ATV

  NEW! Comfort Ride Passenger seat features an adjustable individual shock for vastly improved passenger comfort
• NEW! More room than competitive models: Large, tall backrest with Soft, comfortable, vibration-absorbing
  hand holds and Vibration-absorbing passenger foot rests.
• Powerful 850cc twin EFI with 70 hp.
• Powerful 550cc single EFI with 42 hp.
• Decreased engine vibration due to rubber mounting
  to chassis & internal balance shafts.
• Large airbox for more power and quieter operation.
• Largest starting motor (850) for more reliable starting.
• Dual cup holders feature bungee to keep beverages in place
• The easiest, fastest responding Polaris On Demand All-Wheel Drive (AWD)
  system automatically engages when the rider needs more forward traction. It reverts to 2WD automatically when AWD is no longer needed.
• Anti-Kickback Steering - Longer A-arms & largest wheels moves the steering pivot of each axle to the most neutral center part of the tire.
• Sportsman Touring models offer the most powerful electronic power steering system available on an ATV.
• Active Decent Control [ADC] provides four-wheel braking when vehicle is in AWD, ADC is operating at speeds below 15mph and no throttle is being applied.
• Roller-driven clutch reduces friction and provides smoother, faster clutch response and back shifting.
• “Low” gear with speeds up to 39 mph in low range.
• Large floor boards and most knee room.
• Aggressive heel and calf pockets for ease of movement.
• Seat design is narrow in front & wide and thick in rear.
• Thick & soft hand grips.
• Full mud protection with inner splash shields.
• Sportsman 850/550 Touring ATV Specifications

2010 Polaris Sportsman 550 X2 ATV

• 2010 Polaris Sportsman 550 X2 4x4 ATV

  Exclusive Polaris VERSATRAC system enables the rider to choose Turf mode, 2-wheel drive, On Demand All-Wheel Drive (AWD) or AWD with Active Descent Control by a thumb switch on the handlebar.
• Turf mode provides 15 percent tighter turns
  and minimizes damage to soft terrain.
• The On Demand AWD system automatically engages when the rider needs more forward traction. It reverts to 2WD automatically when AWD is no longer needed.
• 400 lb. dump box with fold-away 2nd passenger seat.
• Powerful 550cc single EFI with 42 hp.
• Decreased engine vibration due to rubber mounting to chassis & internal balance shafts.
• Large airbox for more power and quieter operation.
• Largest starting motor for more reliable starting.
• Rolled Independent Rear suspension minimizes rear-end squat and provides better bump absorption.
• Rolled IRS is coupled w/ progressive, dual-rate springs with adjustable preload front & rear.
• Dual A-arm front suspension with longer control arms.
• Models feature the highest suspension travel with 9 in./22.9 cm front and 10 in./25.4 cm rear.
• High ground clearance at 11.25 in./28.6 cm.
• Sportsman X2 features large brake discs on all four wheels.
• Active Decent Control [ADC] provides four-wheel braking when vehicle is in AWD, ADC is operating at speeds below 15mph and no throttle is being applied.
• Large floor boards and most knee room.
• Aggressive heel and calf pockets for ease of movement.
• Seat design is narrow in front & wide and thick in rear.
• Thick & soft hand grips.
• Full mud protection with inner splash shields.
• Sportsman 550 X2 Specifications

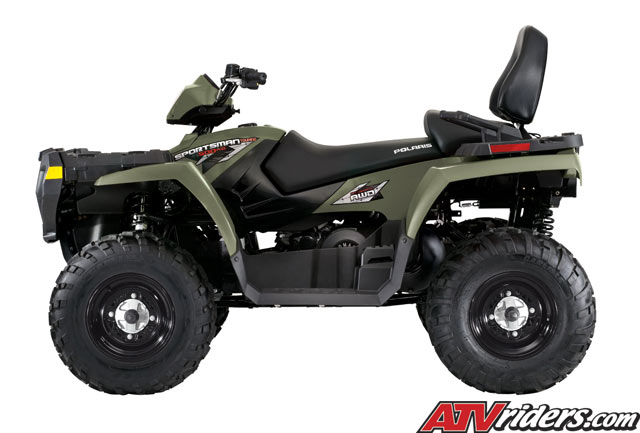

2010 Polaris Sportsman 500 H.O. Touring ATV

• 2010 Polaris Sportsman 500 HO Touring ATV

  The On Demand AWD system automatically engages when the rider needs more forward traction. It reverts to 2WD automatically when AWD is no longer needed.
• PVT (Polaris Variable Transmission), the industry’s all-time bestselling automatic transmission, continually senses engine speed and vehicle torque load to provide the proper amount of power to the drive wheels in every type of riding situation.
• Integrated front and rear storage compartments protect gear while keeping it within arm’s reach.
• The Polaris EBS assists in braking on steep inclines.
• More room than competitive models.
• Large, tall backrest.
• Soft, comfortable, vibration-absorbing hand holds.
• Adjustable, vibration-absorbing passenger foot rests.
• Dual cup holders.
• Pre Wired for Winch
• Rolled Independent Rear Suspension with 8.75 in./22.2 cm of travel and 11 in./27.9 cm of ground clearance.
• Rolled IRS, which is angled, reducing vehicle squat under acceleration.
• Dual rate rear spring for a comfortable ride with or without a passenger.
• Sportsman 500 H.O. Specifications
