2009
Can-Am DS 450 Race Ready ATV's - DS 450
Base Model ATV
The DS450 ATV remains the benchmark for
performance, handling and control - on the
track and on the trail - thanks to the Rotax
power, low weight, centralized mass, low
unsprung weight, and fully-adjustable sport-tuned
suspension.

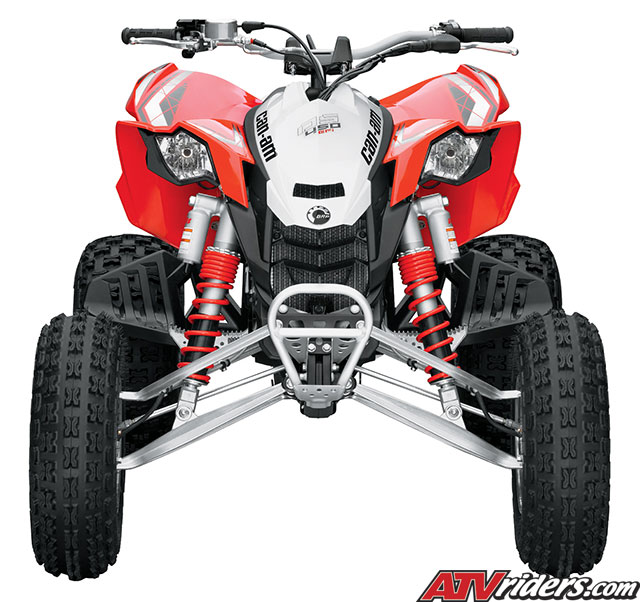

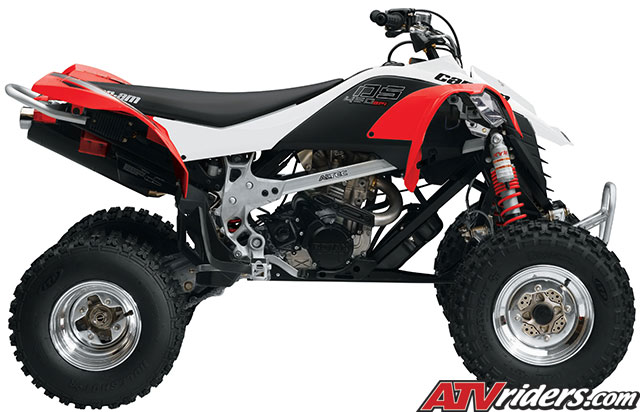

The
New Red and White Can-Am DS 450
Base ATV
DS
450 Highlights
New, aggressive headlight design
New Can-Am Red and white color option
All models have quick-adjust clutch
perch

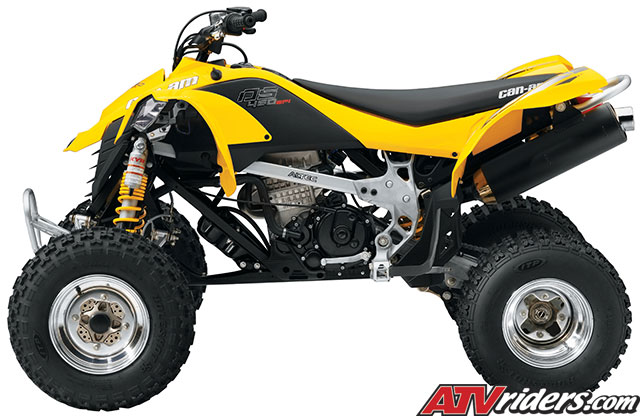

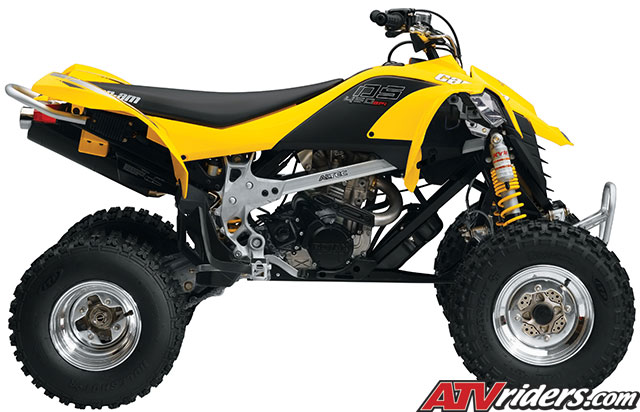

The
Classic Yellow Can-Am DS 450
Base ATV
DS
450 ATV Base Model Key Features
Rotax® 4-TEC 450 EFI - This
engine features top-end DNA from the Rotax
V990 which powers the Aprilia‡ RSV
1000 R sportbike while the crankcase,
clutch and transmission are specifically
designed for the rigors of off-road riding.
Its free-flow design - with the largest
piston bore, intake valves and throttle
body of the segment - delivers awesome
power and great potential for performance
tuning. A sophisticated EFI system with
superfast micro-controller optimizes performance
at every rpm, compensating for both temperature
and altitude; throttle response is instant.
ALTEC™ aluminium frame
- Aerospace-grade aluminium in
dual-pyramidal design is exceptionally
strong and lightweight. Unique aluminium
lock-bolt fastening system eliminates
the need for welds. Strength comes from
computer-optimized design rather than
heavier or added materials. The pyramidal
structure has been proven on BRP’s
Ski-Doo® REV™ and REV-XP™
snowmobiles.

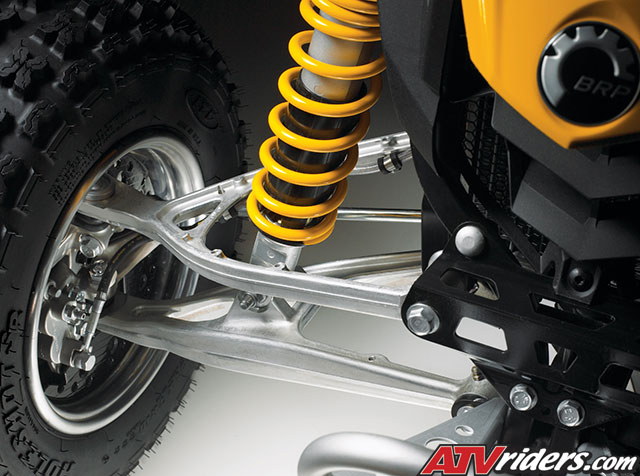

R-type double A-arm front suspension*-
The R-Type forged aluminium double
A-arm front suspension delivers razor-sharp
handling, remarkable bump absorption,
and confident tracking. The radical design
with inverted dual-piston caliper - on
the inside of the disc - enables placement
of the ball-joints and kingpin axis deep
inside the wheel for reduced scrub and
steering kickback, as well as self-correcting
behavior under hard braking. All this
in a lightweight package with less unsprung
weight than competitive designs for a
better ride and improved control.
KYB HPG piggyback shocks**-
Aluminum-bodied shocks with compression
and rebound adjustment and threaded pre-load
adjustment. Features 9.5-inches (24 cm)
of travel in front, 10.2 inches (26 cm)
in rear. Lightweight, capable and adjustable.

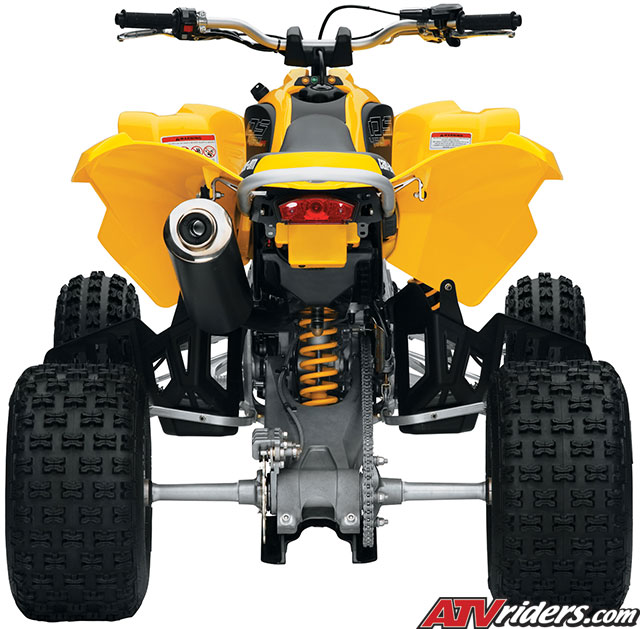

R-Type rear swing arm suspension**-
Lightweight design dramatically
reduces unsprung weight for quick response,
exceptional traction capability and less
rider fatigue. Cast-aluminium swingarm
with rising-rate linkage, hollow Chromoly
4140 rear axle, extended-reach aluminium
hubs and aluminum chain sprocket.

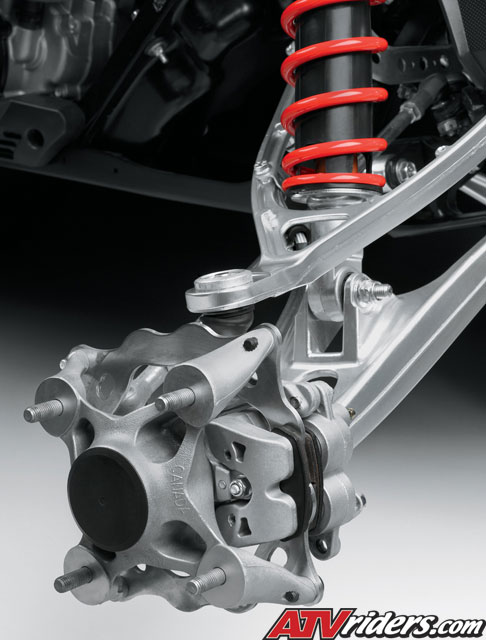

Wilwood™ braking systems.
Inverted dual-piston calipers - mounted
inside front rotors - enable unique knuckle/spindle/A-arm
design. Front and rear rotors’ wave
shape is computer-designed for exceptional
cooling.
Performance wheels/tires - Specifically-designed
ITP‡ Holeshot‡ SR tires to
get maximum performance from the DS 450
EFI. The rims are lightweight, yet durable,
because of aluminum construction with
rolled bead.
Performance ergonomics - Designed
to give the active sport rider room and
the right leverage. Narrow body and seat
with smooth transitional surfaces, wide
foot pegs and deep heel guards.
Performance features - Detachable
headlights, interchangeable front fenders
*
Base and DS450 X xc model only
** Base DS450 only ®,
™ and the BRP logo are trademarks
of Bombardier Recreational Products Inc.
‡ All other trademarks are the property
of their respective owners
