Can-Am now boasts the most race-ready 450
sport ATV line in the industry. All models
get power from a proven Rotax® engine.
And the ultra-light weight comes from cutting-edge
computer design and the most revolutionary
thinking in the sport ATV world.

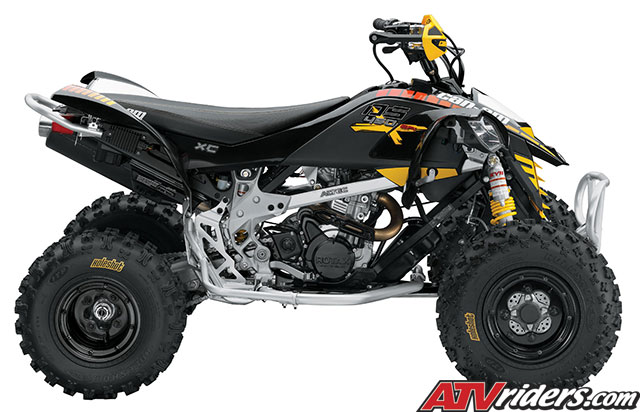

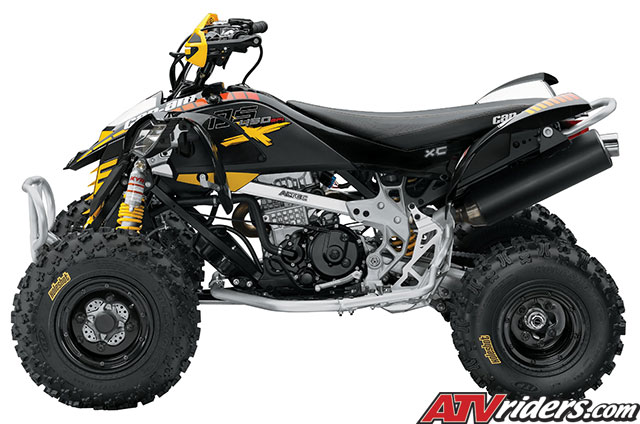

Can-Am
DS 450X XC Race ATV
Cross-Country-specific
DS450X XC Package
Caster-adjustable A-Arms
9.6 inches (244 mm) of front suspension
travel
10.5 inches (267 mm) of rear suspension
travel
Dual-rate front shocks with crossovers
ITP Holeshot GNCC tires
Front and rear beadlock ITP T-9 wheels
Cross-country-specific ride height
+1 (25 mm) anti-vibe steering stem
Aluminium skid plates
Aluminium nerf bars
DS
450X XC ATV Key Features
46-inch width - At
46 inches (1168 mm) wide, the DS450X XCis
the perfect width for the tight woods
courses cross-country racers love. With
forged aluminium upper and lower A-arms,
the X xc can precisely pick its way through
the trees.
Anti-vibe steering stem - A
rubber-mounted +1 (25 mm) anti-vibe steering
stem comes standard on the DS 450X XC.
This gives the racer a better feel for
the ATV while in an attacking stance out
on the course. There is no need to buy
an aftermarket stem to be competitive.
Mounted to the steering stem is an aluminium
6061-T6 taper-profile handlebar with square
racing pad.
Caster-adjustable front end
- The front end of the DS 450
X xc comes with a shim-style caster adjustment.
Each shim represents one-degree of adjustment
with 3 degrees to 10 degrees of caster
adjustment. This allows the racer to completely
"dial in" the DS 450 X xc for
his or her preference.
Race-bred suspension -
The suspension, both front and rear, features
(piggyback up front and remote reservoir
for the rear) KYB HPG shocks with Kashima
coating. This high-performance shock coating
reduces internal friction and heat for
consistent shock performance (less stiction
and less fade). The shocks are fully adjustable
with high- and low-speed rebound and compression
damping, as well as preload adjustment.
Two separate-rate springs with a crossover
up front allow for maximum performance
in all conditions. Front travel is 9.6
inches (244 mm) while rear travel is 10.5
inches.(267 mm)

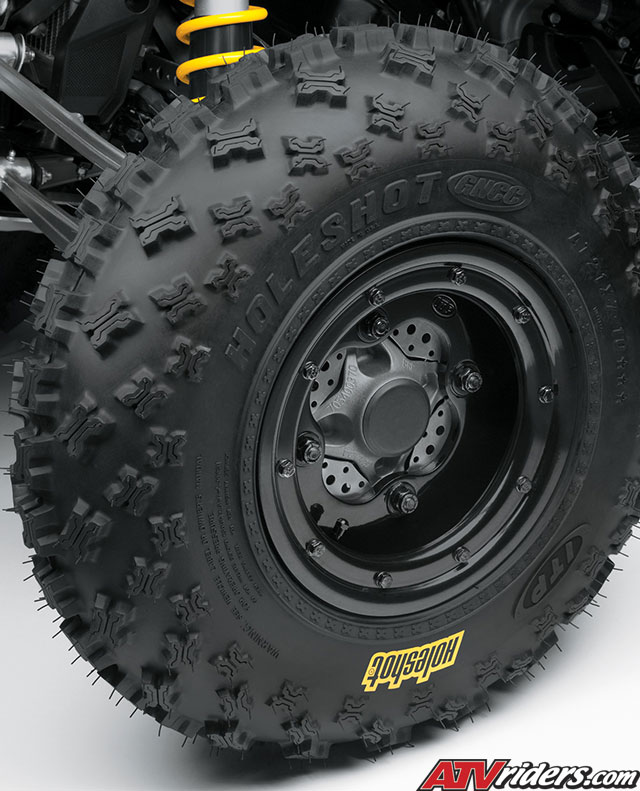

ITP Holeshot GNCC tires and ITP
T-9 wheels - The DS 450 X xc
features 20-inch (508 mm) rear ITP Holeshot
GNCC tires mounted on 10-inch (254 mm)
black, aluminum ITP T-9 beadlock wheels.
Up front, 21-inch (533 mm) ITP Holeshot
GNCC tires mounted on 9-inch (229 mm)
black, aluminum ITP T-9 wheels with beadlock
rings. The taller lugs of the Holeshot
GNCC provide superior traction in demanding
race conditions.
Aluminum nerf bars -
Straight from the factory, the DS 450
X xc comes complete with lightweight aluminium
nerf bars with aluminum heel guards. Side
extensions are adjustable to a variety
of customizable widths. If one desires,
the nerf bars and heel guards can be removed
with ease.
Adjustable-width axle - The
DS 450 X xc features a chromoly 4140 adjustable-width
hollow axle. Adjustment from 46 inches
(1168 mm) to 50 inches (1270 mm) is possible
with .5-inch (13 mm) spacers for rider
preference.

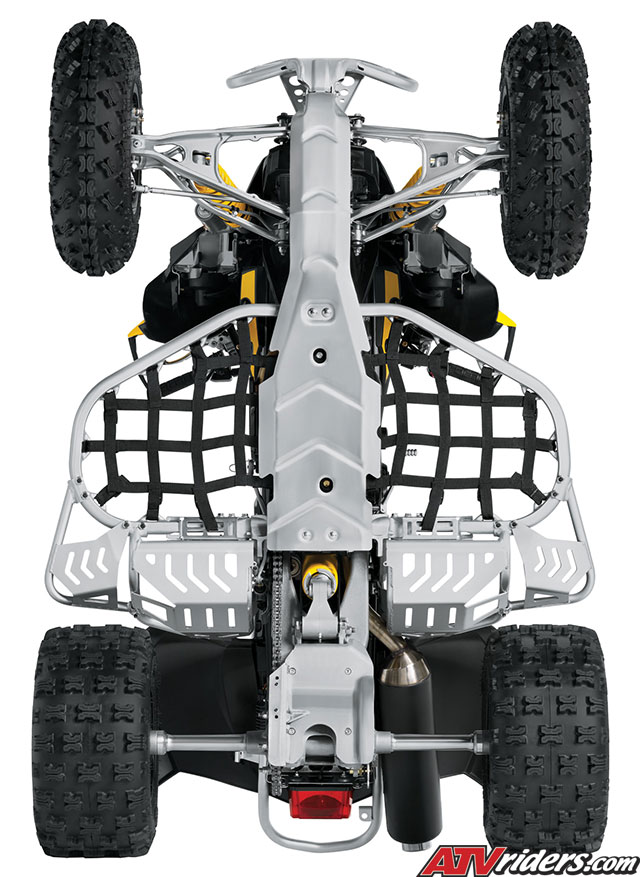

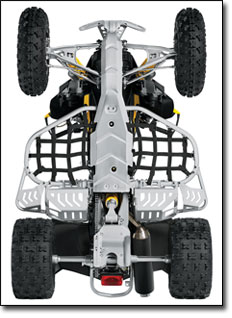

Cross-country-specific amenities
- Aluminum skid plates for the
frame and swingarm are standard on the
DS 450 X xc for added protection on demanding
courses. The X xc also comes complete
with a tether engine-shut-off switch that
is a requirement for many local and national
cross-country racing circuits. From the
factory, the ride height of the X xc is
set at 7.5 inches (101 mm)(assuming a
175-pound (79 kg) rider with gear), meaning
exceptional cornering performance for
a lower centre of gravity. Wind deflectors
that feature a full-wrap aluminium brace
are mounted to the handlebars.

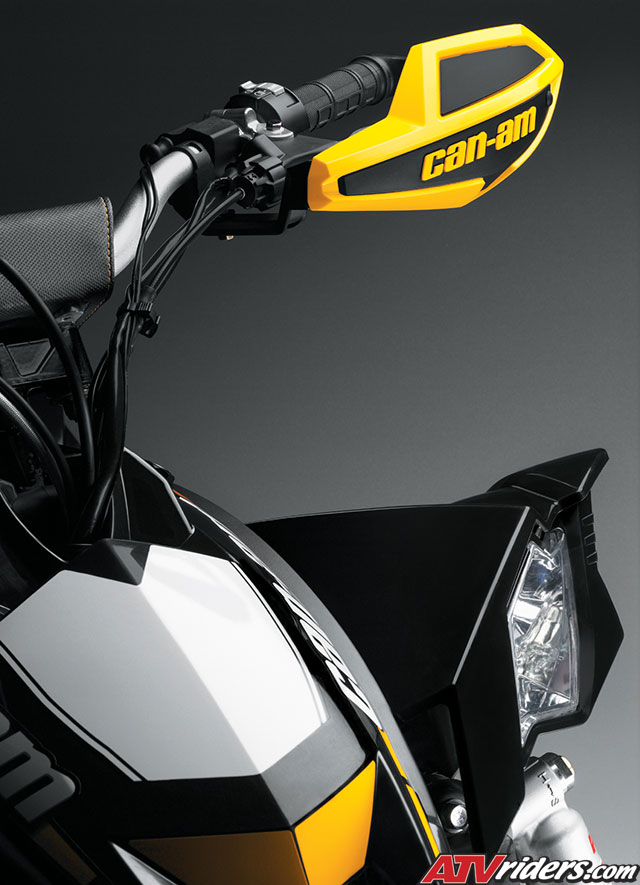

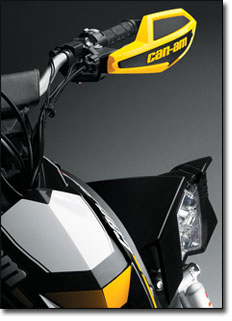

DS450X
XC ATV Package Hand Guards and Full
Chassis Skid Plates
®, ™
