Kawasaki ATV Models

Kawasaki Teryx 750  RUV Monster Energy

2009 Kawasaki TERYX™ 750 4x4 / TERYX™ 750 4x4 LE
Digital Fuel Injection, Digital Instrument Panel and Tilting Bed Highlight Changes

Navigation:

09 Teryx 750 RUV   09 Teryx 750 UTV   09 Teryx 750 SXS

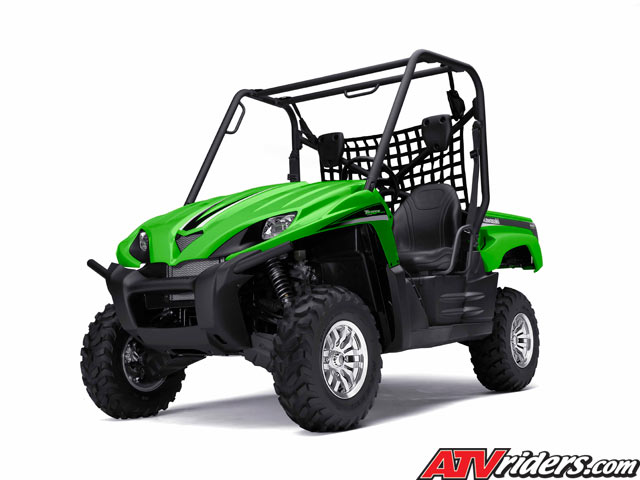

Kawasaki's 2009 Teryx 750 RUV SXS Sport Edition - lime green color scheme with black accents and aluminum rims.

Introduction:

A wide body chassis, big V-twin power and an efficient CVT hallmark Kawasaki’s impressive line of Teryx™ recreation utility vehicles. For 2009, the original Kawasaki Teryx 750 4x4 takes the next evolutionary step with the addition of digital fuel injection and a host of upgraded features.
Integrated occupant protection, superior ground clearance, impressive cargo capacity, and sport handling made the original Teryx one of the most talked-about RUVs on the planet. The addition of a new digital fuel-injection (DFI) system to its mid-mounted 749cc 90-degree V-twin engine adds even more performance and utility to the Teryx, giving it a clear edge over its rivals.

The enhanced response provided by the Teryx’s new digital fuel injection system means its strong and proven V-twin engine is quicker-revving than ever. Kawasaki engineers kept much of the engine’s likeable character when they added DFI, but still found ways to improve it – such as changing the ignition timing to boost low and mid range torque and improve response at higher rpm. Other inherent benefits gained from adding DFI include automatic altitude compensation, automatic idle adjustment and easy, choke-free starting.

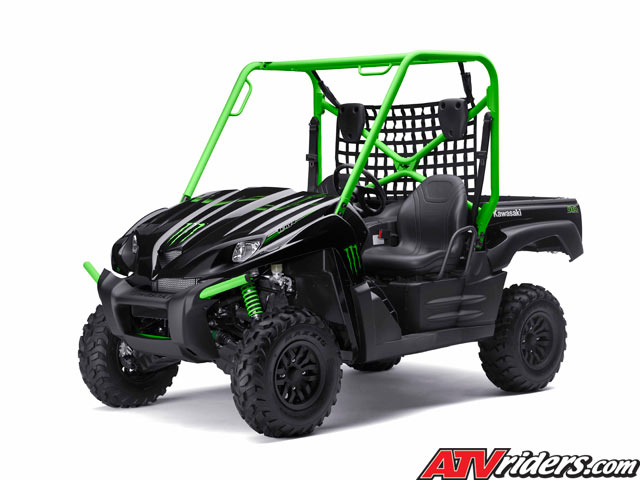

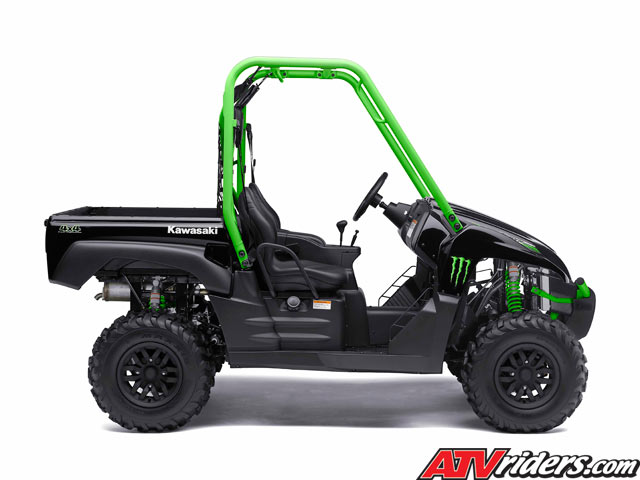

Monster Energy Teryx  UTV   Monster Energy Teryx  UTV   NRA Teryx 750 RUV

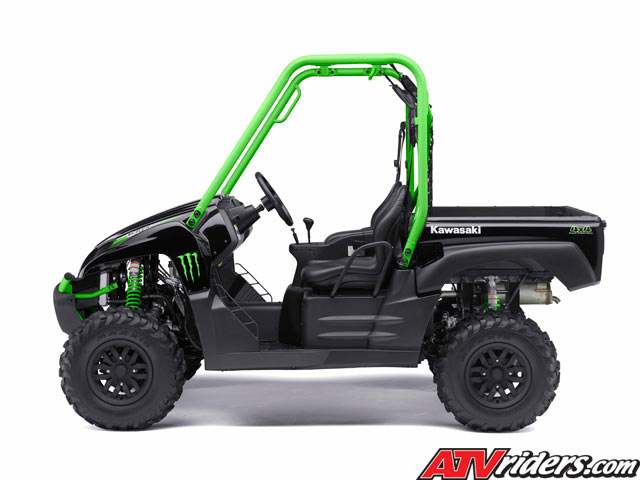

For riders seeking the latest racetrack style, Kawasaki’s Teryx 750 FI 4x4 Sport Monster Energy® is the answer. With its black bodywork and wheels highlighted by an aggressive Monster Energy graphics set, this high performance RUV will certainly stand out from the pack.

The fuel injection system’s sophisticated array of sensors includes an inlet air pressure, throttle position, crankshaft position, rpm, water temperature and a vehicle down sensor. As part of the DFI upgrade, the Teryx also received a new fuel tank with an internal fuel pump.

Mated to the engine is Kawasaki’s superb continuously variable transmission (CVT), which transfers the smooth power and quick response from the big V-twin to the wheels smoothly and quickly. The healthy output of this powertrain provides true sport performance, in a controlled manner that allows the driver to harness the full potential of this impressive vehicle. The CVT also received refinements for 2009. Both the intake and exhaust cooling ducts were revised to better prevent water or mud from entering the drive belt area. The new intake duct flows air to the CVT more effectively for better cooling while the intake air temperature is reduced via heat shielding on the exhaust pipe located below the intake duct.

Kawasaki L.E. Teryx 750 SXS   NRA Teryx 750 RUV   Camo Teryx 750 RUV

L.E. 2009 Kawasaki Teryx™ 750 FI 4x4 Sport RUV



NRA Outdoors Edition Kawasaki Teryx 750 UTV

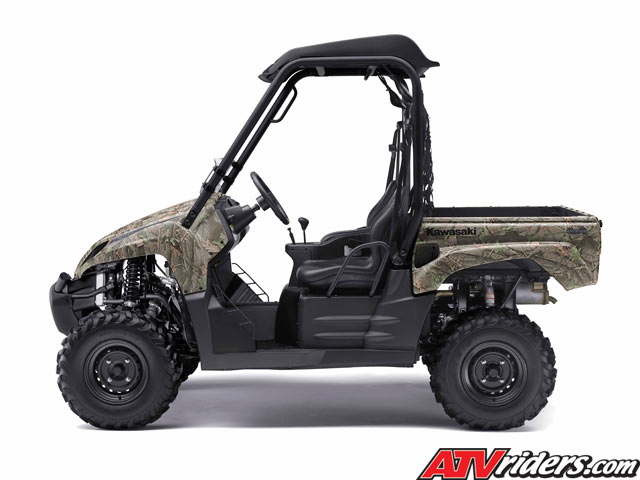

Kawasaki Teryx 750 LE Camo UTV

Throttle Position Sensor (TPS) data was added to the CVT Belt Protection System’s sensor inputs. Other inputs include a gear sensor (not in neutral), vehicle speed (measured from the rear wheel), and engine speed. The extra input permits the system to better prevent tire freewheel and offer upgraded rock section performance with less belt overloading. Should the system detect engine operation at high rpm for more than two seconds while the rear wheels remain motionless (i.e. rear wheels are immobilized and the belt is slipping), it automatically retards ignition timing and warns the rider via a flashing belt warning lamp.

Power is nothing without control — big power demands a chassis to compliment it and once again the Teryx delivers with an ideal body width that is narrow enough to be useful and able to navigate most trails, yet wide enough to be stable and handle the healthy output from its V-twin. The wide track Teryx 750 FI 4x4 design exploits a large-diameter, thin-walled tubular frame offering the necessary rigidity without performance draining weight. It also meets SAE regulations as a roll-over protective structure (ROPS) with an arrangement spacious enough to comfortably fit two full-sized adults.

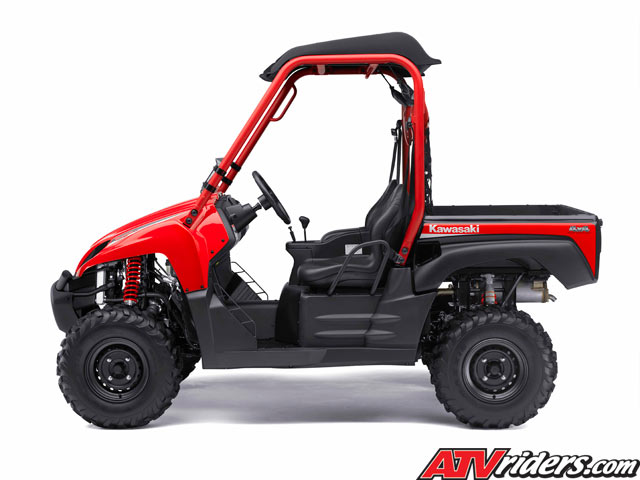

09 Teryx 750 SXS   09 Teryx 750 UTV   09 Teryx 750 UTV

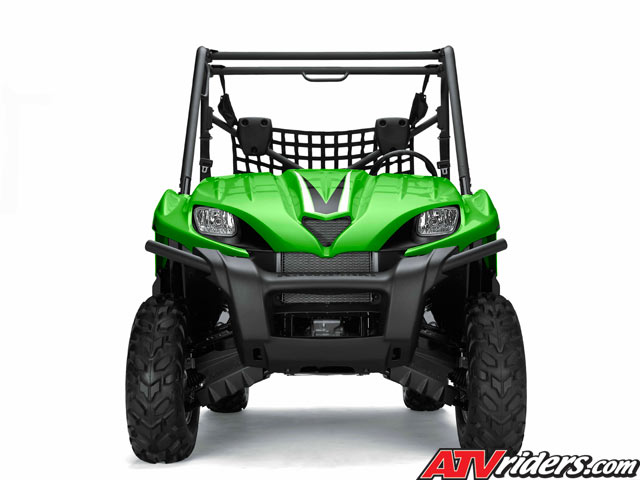

Kawasaki's 2009 Teryx 750 RUV SXS Sport Edition

The Teryx 750 FI 4x4 shares the long A-arm and narrow frame concept of its sport ATV brethren to give it the maximum travel while minimizing wheel camber change. For 2009, the adjustable Kayaba gas-charged shocks have revised settings combined with a new stabilizer bar to improve ride quality. Combined with the mid-ship engine, the balanced package offers superb control and cornering performance, even at top speed.

When the terrain requires it, the driver can activate 4WD with a simple servo-control switch. Further traction management is achieved via an ATV-style front differential control activated with a hand lever that functions like a rear hand brake and lets the driver select how much the wheels are locked together. The rear wheels stay locked and always turn together — much like a sport ATV — allowing the Teryx to slide around corners “drift” style.

::CONTINUED::
